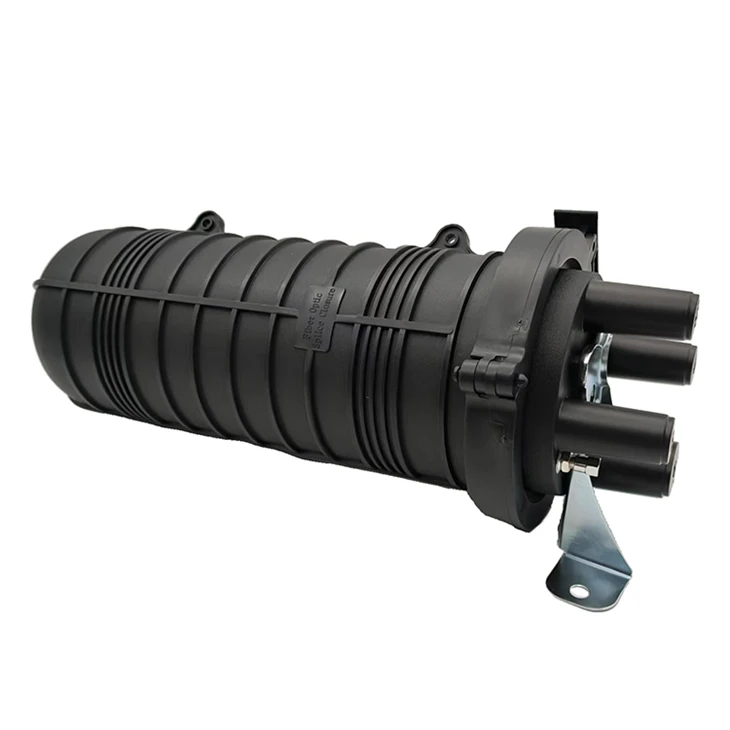

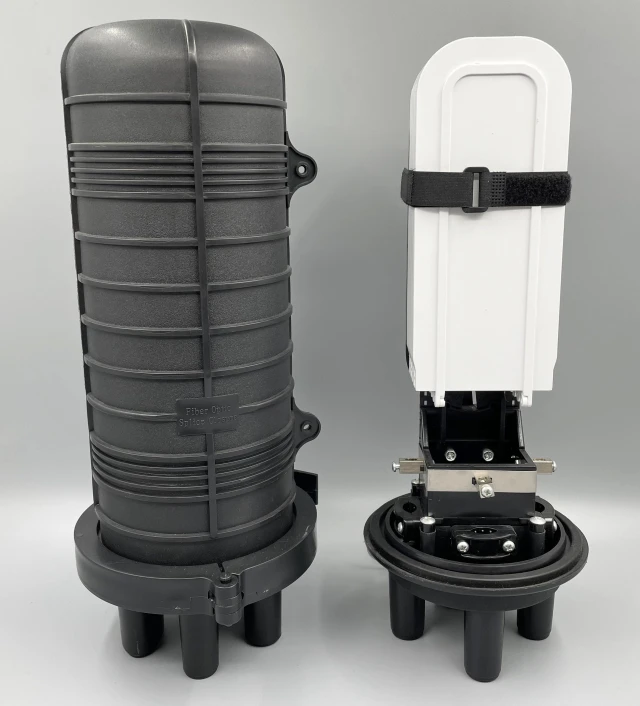

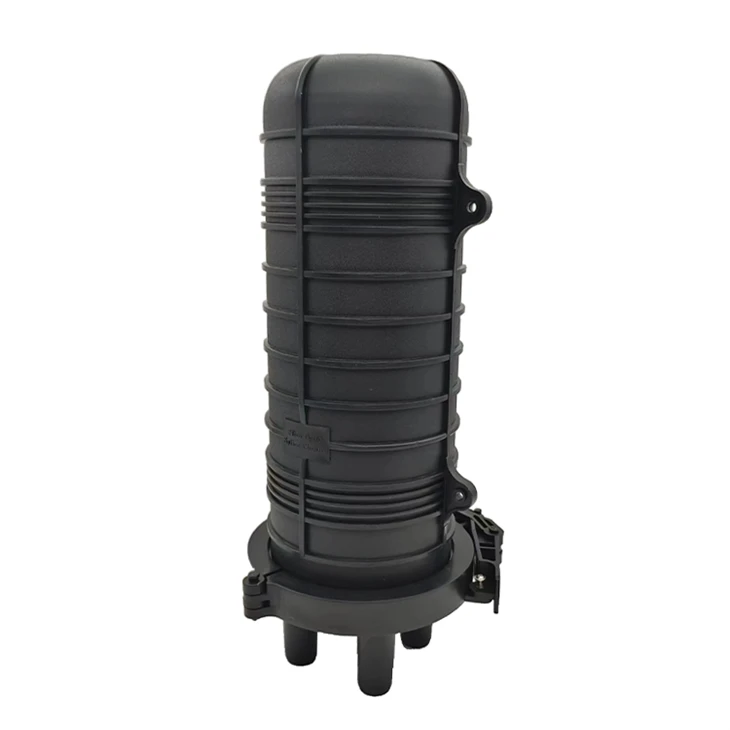

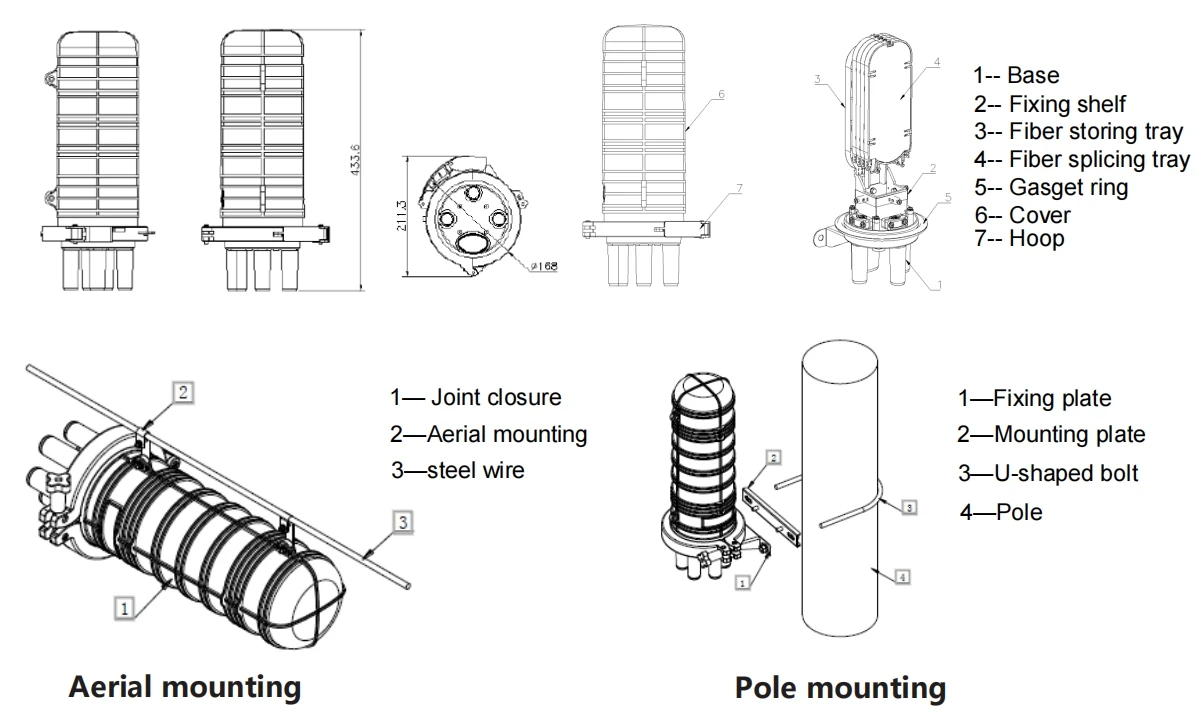

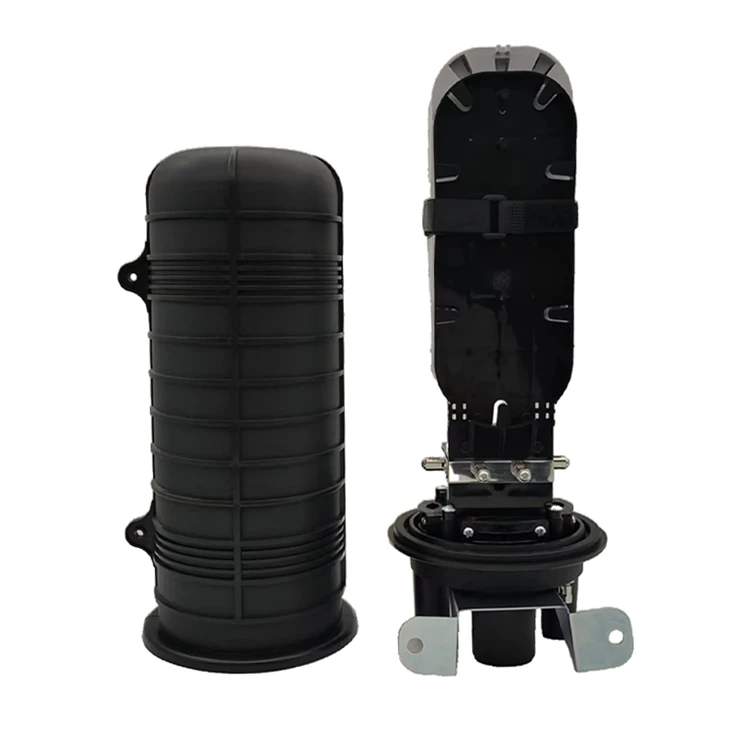

kaw 96 core lub hom phiaj ntawm kev faib tawm, sib txuas, thiab khaws cov kab hluav taws xob sab nraum zoov uas nkag thiab tawm qhov kaw los ntawm nws qhov kawg. kaw 96 core Fiber Optic Cable ob txoj kev sib txuas yog muaj: kev sib txuas ncaj qha thiab kev sib cais. Cov kev xaiv no pom daim ntawv thov nyob rau hauv cov xwm txheej xws li kev teeb tsa nyiaj siv ua haujlwm, cov kav dej kav dej, thiab cov xwm txheej embedded. Nyob rau hauv sib piv rau lub davhlau ya nyob twg thawv, kaw thov ib tug ntau dua qib ntawm sealing. Kev sib khi zoo yog ua tiav los ntawm kev siv lub nplhaib sib khi thiab cov cua li qub hauv kev kaw, qhov no tsis yog qhov tseem ceeb rau cov thawv ntim khoom.
Specification
| Qhov chaw ntawm Keeb Kwm: Guangdong, Suav | |
| Tus Qauv Zauv: GDFI-003 (F102H) | |
| DESCRIPTION: 96/144 Core Fiber Optic Cable Kaw | |
| Dimensions thiab muaj peev xwm | |
| Qhov Loj (D * H) | 420mm * 205 hli |
| Muaj peev xwm | 144 Cores |
| Number of Cable nkag/Tawm | 1:3 |

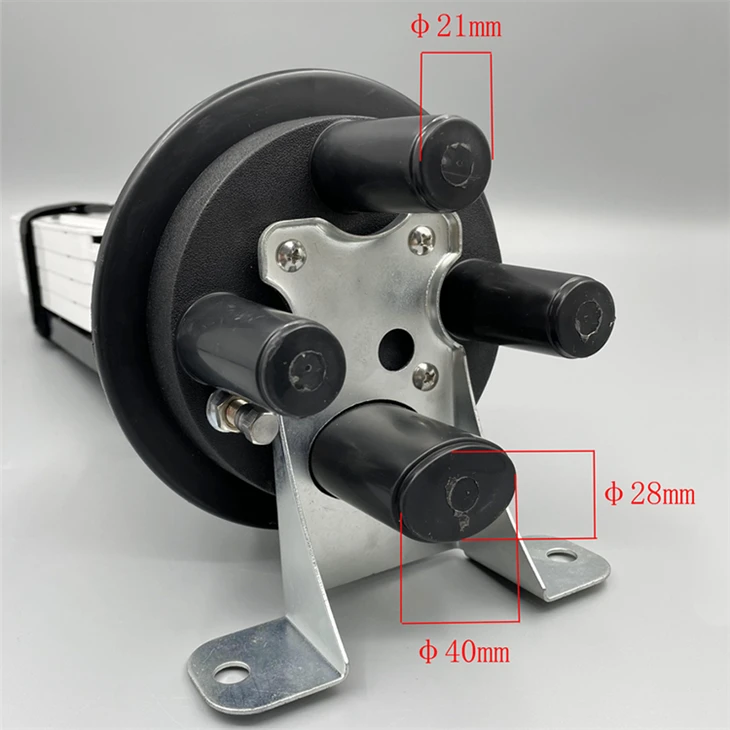

| Txoj kab uas hla | 3 qhov chaw me me (21mm) thiab 1 qhov chaw nres nkoj loj (40mm) |
| Cov xwm txheej ua haujlwm | |
| Kub | -40℃~ +60 degree |
| Cov av noo | Tsawg dua lossis sib npaug li 95% (ntawm 40 degree) |
| Cua Siab | 70kPa ~ 106kPa |
Tuam txhab Profile

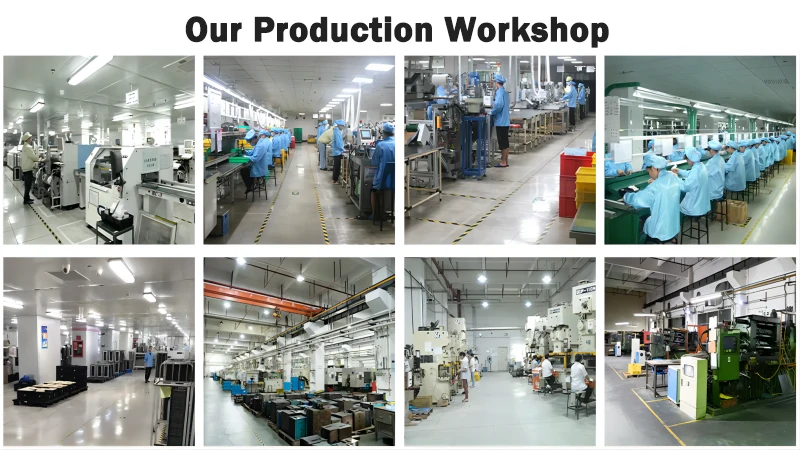

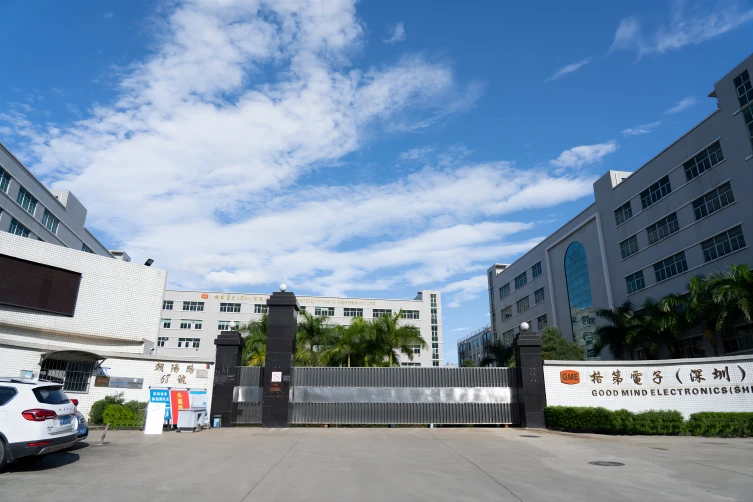

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Nta
1. Lub kaw casing yog ua los ntawm cov yas engineering zoo, thiab zoo
kev ua tau zoo ntawm kev tiv thaiv - yaig tawm tsam cov kua qaub thiab alkali ntsev, tiv thaiv - kev laus, thiab
raws li tus tsos thiab txhim khu kev qha mechanical qauv.
2.Cov qauv siv tshuab yog txhim khu kev qha thiab muaj kev ua tau zoo ntawm kev tiv thaiv
ib puag ncig qus thiab kev hloov pauv huab cua hnyav thiab ua haujlwm hnyav
ib puag ncig. Qib tiv thaiv mus txog IP68.
3.Cov kaw muaj feem xyuam rau ribbon hom optical cable thiab ntau
kho qhov muag kab.

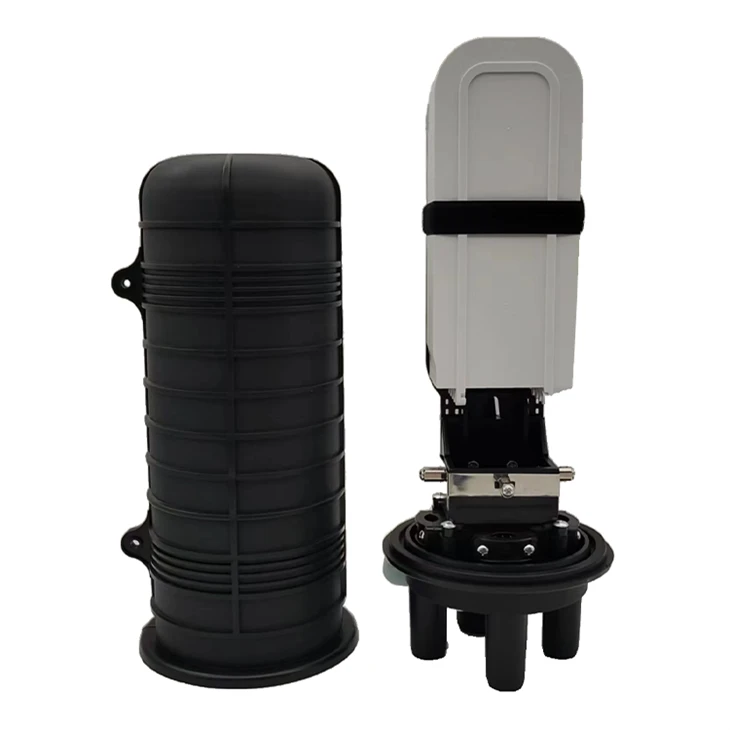

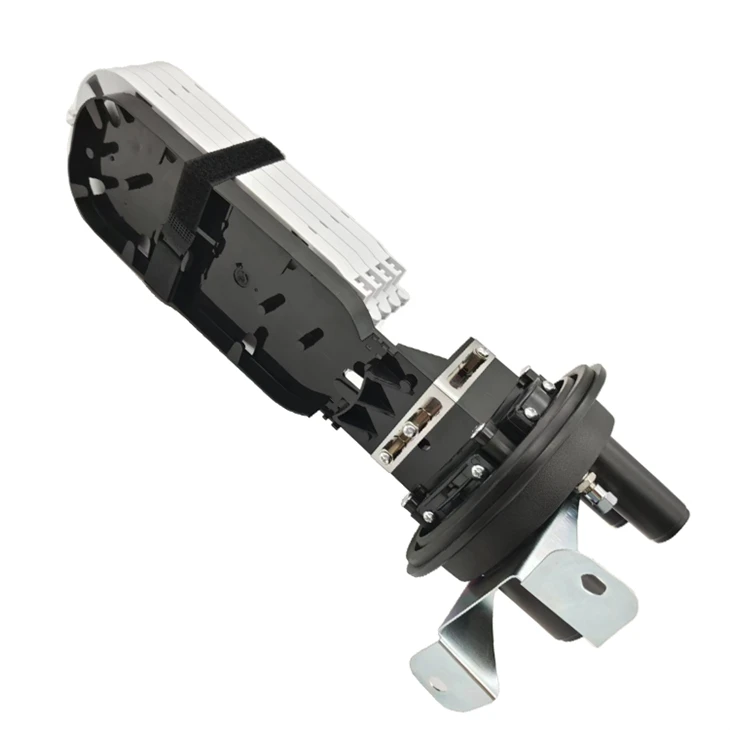

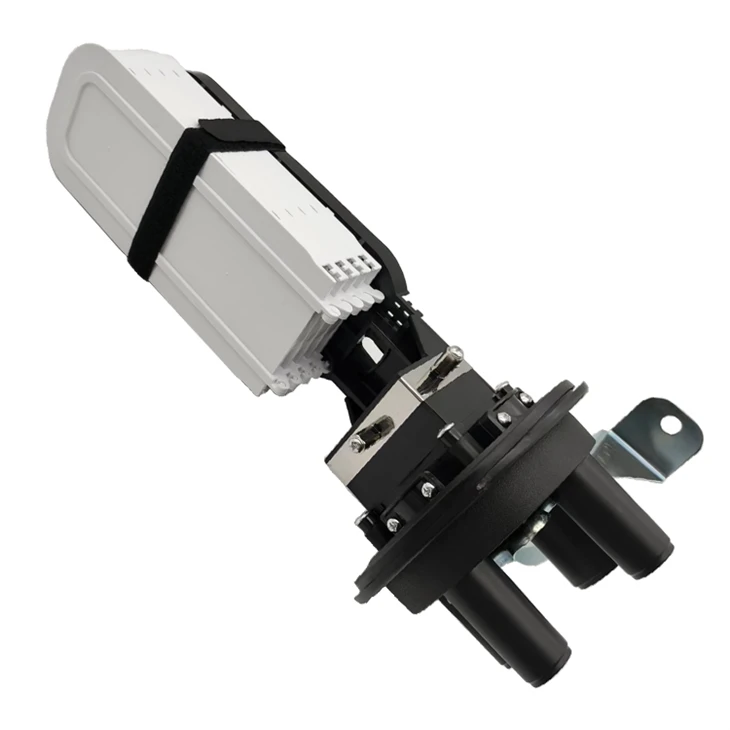

4.Cov tais sib txuas hauv qhov kaw yog tig tau - zoo li phau ntawv, thiab muaj
txaus curvature radius thiab qhov chaw rau winding optical fiber kom paub tseeb tias
qhov curvature radius rau optical winding 40mm.Txhua qhov kho qhov muag cable thiab fiber ntau
tuaj yeem ua haujlwm ntawm tus kheej.
5.Qhov kaw yog me me, muaj peev xwm loj thiab kev saib xyuas yooj yim.
Lub elastic roj hmab foob rings nyob rau hauv lub kaw yog zoo sealing thiab
hws- pov thawj kev ua tau zoo.
6.Lub casing tuaj yeem rov qhib dua yam tsis muaj cua nkag. Tsis muaj cuab yeej tshwj xeeb
yuav tsum tau. Kev ua haujlwm yog yooj yim thiab yooj yim. Cov cua valve yog muab rau
kaw thiab siv los xyuas qhov kev ua tau zoo sealing.

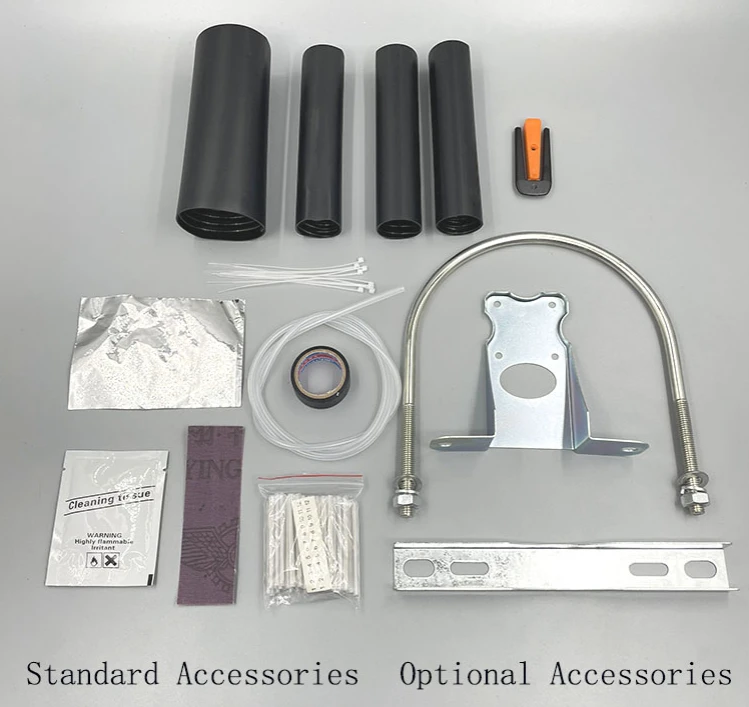

Standard Accessories
- Tag Paper: 1 pcs
- Sand ntawv: 1pcs
- Nyiaj ntawv: 1pcs
- Ntxuav cov ntaub so ntswg: 1pcs
- Insulating daim kab xev: 1pcs
- Cable khi: 3mm * 10mm 8pcs
- Fiber tiv thaiv tube: 1 pcs
- Thaum tshav kub kub -shrink tes tsho: 1.0mm * 3mm * 60mm 96\\144pcs
- Kub shrink tubing: 1 hnab
- Ncej accessories: 1 pcs (Optional Accessories)
- Kev ntsuas siab valve: 1pcs (Optional Accessories)
- Earthing deriving devicepcs: 1pcs (Optional Accessories)
- Foob kev ua tau zoo: tom qab lub thawv kaw lawm, nce mus rau 100kPa sab hauv (kev nce nqi tsuas yog siv rau cov qauv nrog lub qhov cua), thiab tom qab ntawd tsau rau hauv dej ntawm qhov kub thiab txias, tom qab 15 feeb ntawm kev soj ntsuam tas li, tsis muaj npuas kom dhau.
- Rwb thaiv tsev tsis kam: rwb thaiv tsev tsis kam ntawm cov hlau ua haujlwm thiab lub ntiaj teb yog ntau dua 20kMΩ.
- Pressurization: tsis muaj kev tawg lossis flashover hauv qab 15kVdc / 1min ntawm cov hlau ua haujlwm thiab lub ntiaj teb.
- Qhov curvature vojvoog ntawm cov fiber ntau 40 hli, tsis muaj kev poob ntxiv hauv lub tais splice.
- Nws tuaj yeem dais lub axial tensile lub zog tsis pub tsawg tshaj 1000N.
- Lub neej ua haujlwm: 25 xyoo.
- Lwm qhov kev ua tau zoo yog tag nrho raws li qhov yuav tsum tau ua ntawm tus qauv YD / T814-1998.
Puas muaj kev txiav txim siab tshwj xeeb rau kev saib xyuas lossis kev daws teeb meem?
Kev tshuaj xyuas tsis tu ncua thiab kev saib xyuas ntawm Kaw Fiber 96 Core raug pom zoo los xyuas kom meej kev ua haujlwm txuas ntxiv thiab kev ntseeg tau. Cov txheej txheem daws teeb meem yuav suav nrog kev kuaj xyuas cov cim ntawm kev puas tsuaj, tshuaj xyuas kev sib txuas sib txuas, thiab txheeb xyuas qhov tseeb ntawm cable.
Puas muaj kev txhawb nqa rau Kaw Fiber 96 Core?
Yog lawm, cov tuam ntxhab lossis cov chaw muag khoom ntawm Closure Fiber 96 Core feem ntau muab kev txhawb nqa thiab kev pabcuam rau kev teeb tsa, kev saib xyuas, thiab kev nug txog teeb meem.
Puas yog Kaw Fiber 96 Core tuaj nrog kev lees paub?
Cov ntsiab lus Warranty yuav txawv nyob ntawm tus neeg tsim khoom lossis tus neeg muag khoom. Nws raug nquahu kom kuaj xyuas qhov kev lees paub thiab cov nqe lus thaum lub sijhawm yuav khoom.
FAQ
Q: Kuv tuaj yeem yuav Kaw Fiber 96 Core qhov twg?
A: Kaw Fiber 96 Core tej zaum yuav muaj los ntawm cov khoom siv sib txuas lus sib txuas lus, cov neeg xa khoom, lossis cov neeg muag khoom tau tso cai. Nws raug pom zoo los ntawm cov chaw muab khoom lag luam muaj npe kom paub meej cov khoom zoo thiab kev txhawb nqa.
Q: Muaj pes tsawg cores puas muaj 96-core kaw fiber ntau?
A: 96-core kaw fiber ntau feem ntau muaj 96 tus neeg fiber ntau optic strands lossis cores. Cov cores no tso cai rau kev sib kis ntawm cov ntaub ntawv teeb liab hla kev deb nrog lub peev xwm bandwidth siab.
Q: Dab tsi yog cov kev siv ntawm 96-core kaw fiber ntau?
A: 96-cov tub ntxhais kaw fibers feem ntau yog siv hauv kev sib txuas lus hauv xov tooj, cov chaw muab kev pabcuam hauv internet (ISPs), cov chaw zov me nyuam, thiab lwm qhov chaw muaj peev xwm sib txuas uas muaj cov ntaub ntawv loj uas yuav tsum tau xa mus sai thiab ntseeg tau.
Q: Muaj pes tsawg cores 96 core kaw fiber ntau feem ntau muaj?
A: 96 core kaw fiber ntau feem ntau haum rau 96 tus neeg fiber ntau optic cores. Cov cores no tuaj yeem raug spliced lossis txiav tawm hauv qhov kaw kom yooj yim rau kev sib txuas ntawm cov ntu sib txawv ntawm fiber ntau optic cables.
