Kev piav qhia
Ib qho 48 core fiber optic cable yog ua haujlwm rau kev faib khoom, sib txuas, thiab khaws cia ntawm cov kab hluav taws xob sab nraum zoov uas nkag mus thiab tawm los ntawm qhov kaw qhov kawg. Muaj ob txoj hauv kev txuas rau 48 core fiber optic cable: kev sib txuas ncaj qha thiab kev sib cais. Cov txheej txheem kev sib txuas no pom muaj txiaj ntsig hauv ntau qhov xwm txheej, suav nrog kev teeb tsa nyiaj siv ua haujlwm, cov kav dej kav dej, thiab cov chaw teeb tsa. Contrasted nrog lub thawv davhlau ya nyob twg, kaw yuav tsum muaj kev sib khi nruj dua. Lub kaw lus txib kom siv cov nplhaib sib khi thiab cov cua li qub kom ntseeg tau tias muaj kev ruaj ntseg foob, qhov uas cov kev cai no tsis tas yuav tsum tau ua rau lub thawv davhlau ya nyob twg.
Specification
| Qhov chaw ntawm Keeb Kwm: Guangdong, Suav | |
| Tus Qauv Zauv: GDFI-002 (F105H) | |

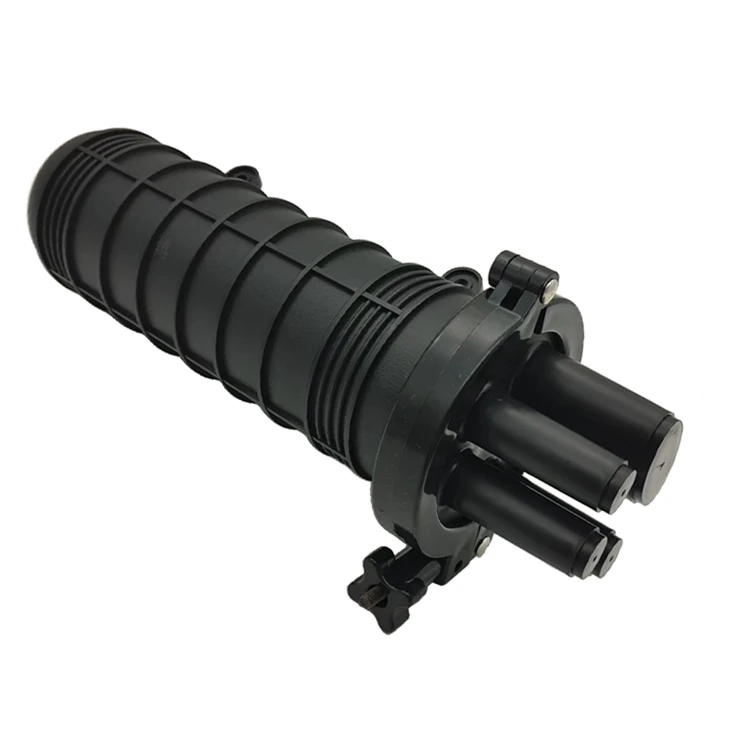

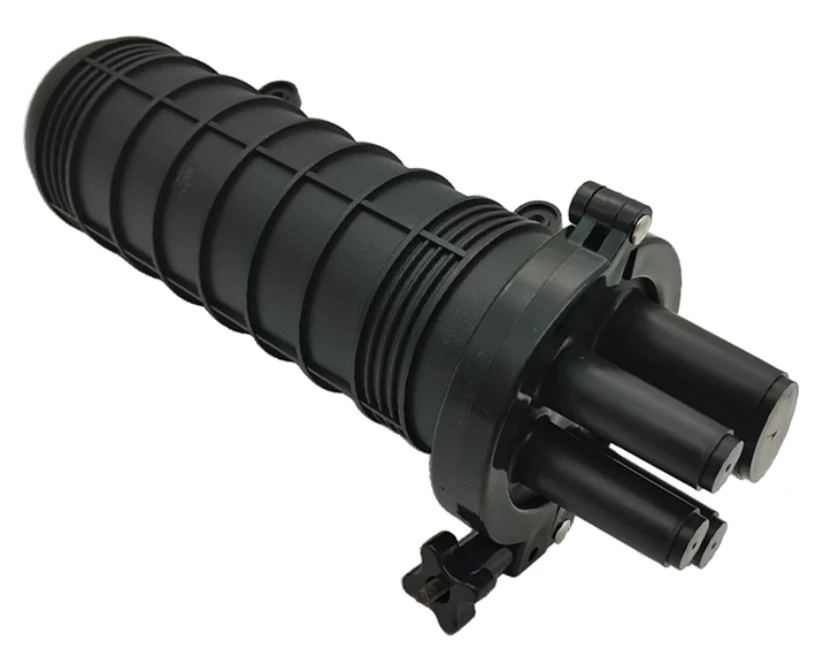

| DESCRIPTION: 48 Core Fiber Optic Cable Kaw | |
| Dimensions thiab muaj peev xwm | |
| Qhov Loj (D * H) | 330mm * 100 hli |
| Muaj peev xwm | 48 Cores |
| Number of Cable nkag/Tawm | 1:3 |

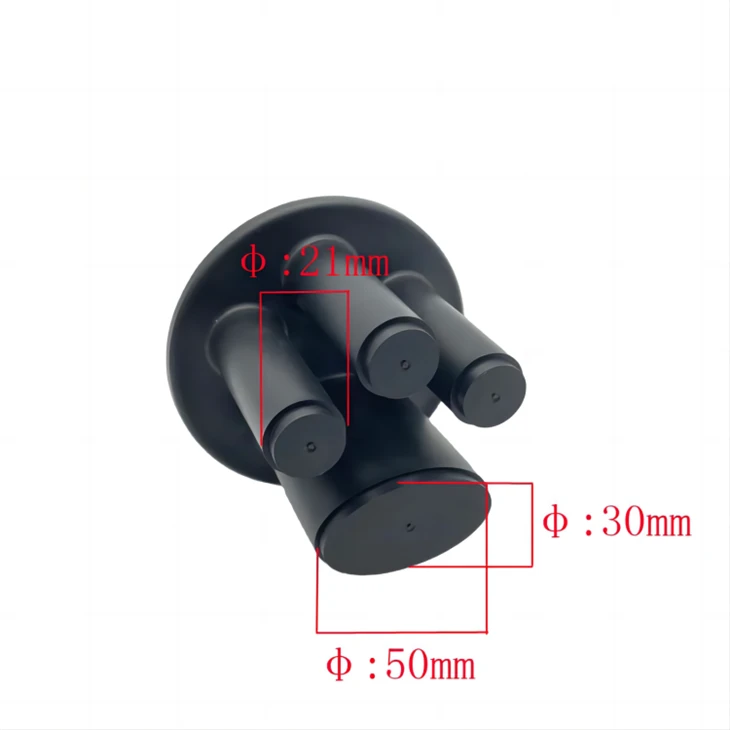

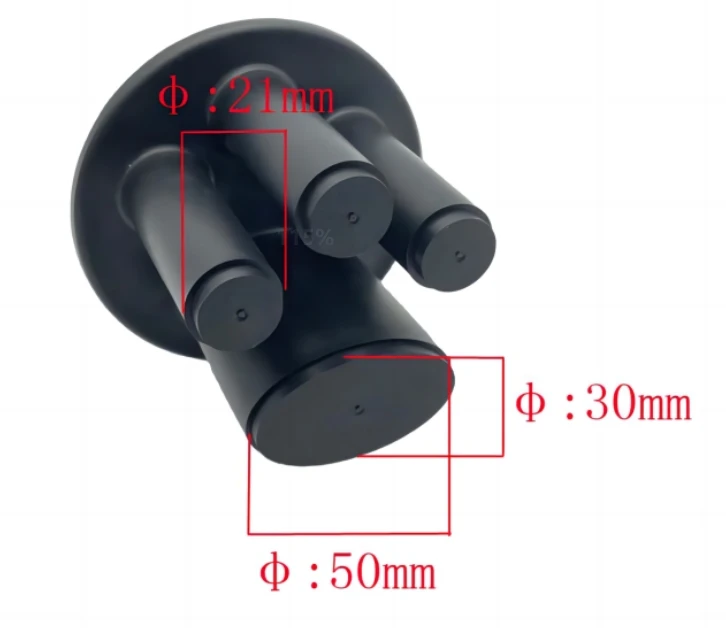

| Txoj kab uas hla | 3 qhov chaw me me (21mm) thiab 1 qhov chaw nres nkoj loj (50mm) |
| Cov xwm txheej ua haujlwm | |
| Kub | -40℃~ +60 degree |
| Cov av noo | Tsawg dua lossis sib npaug li 95% (ntawm 40 degree) |
| Cua Siab | 70kPa ~ 106kPa |

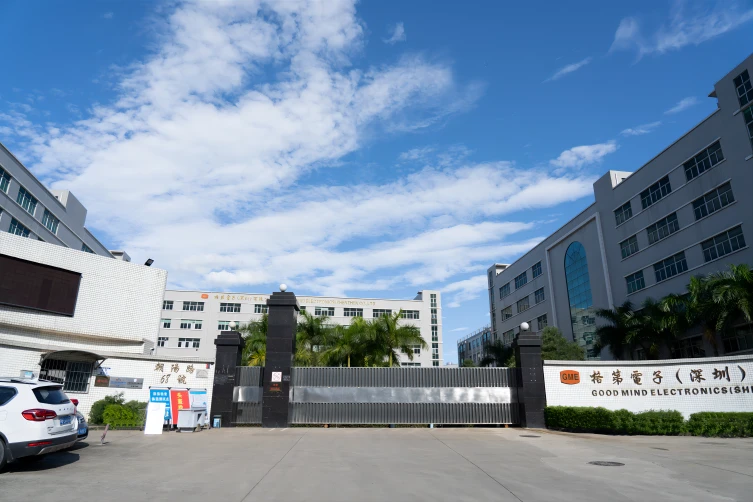

Tuam txhab Profile

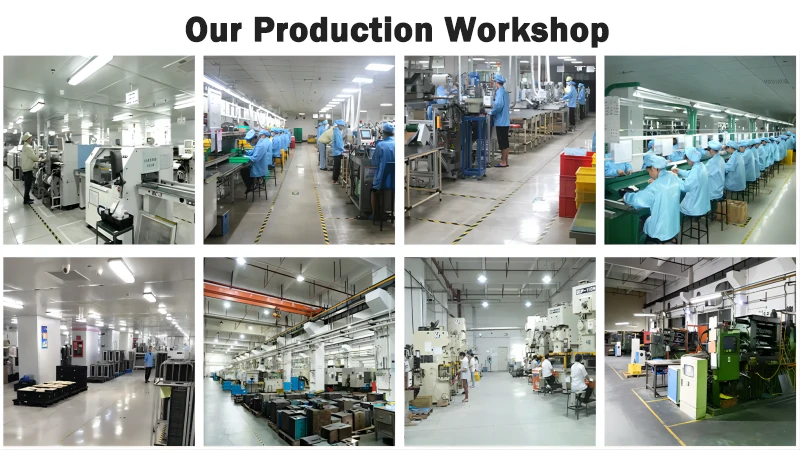

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Nta

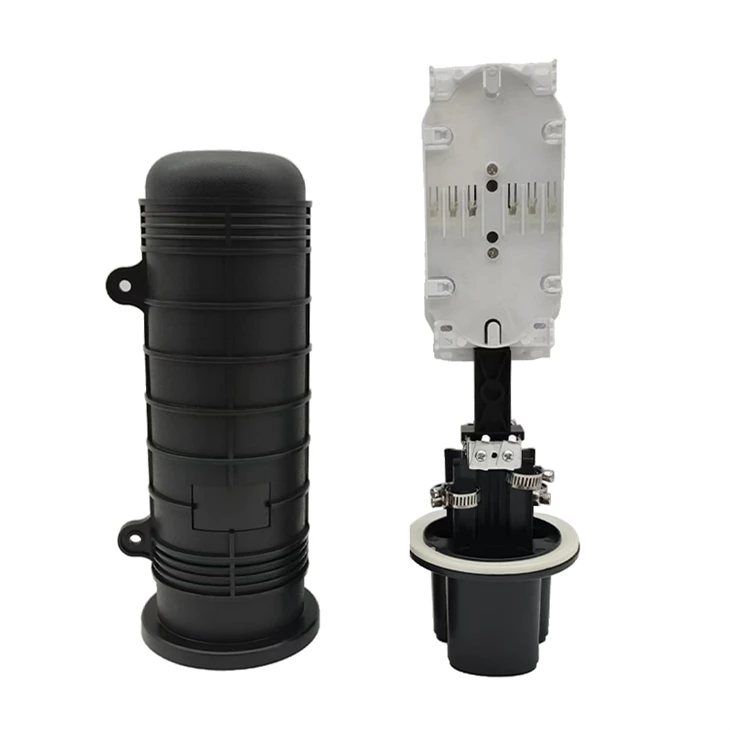

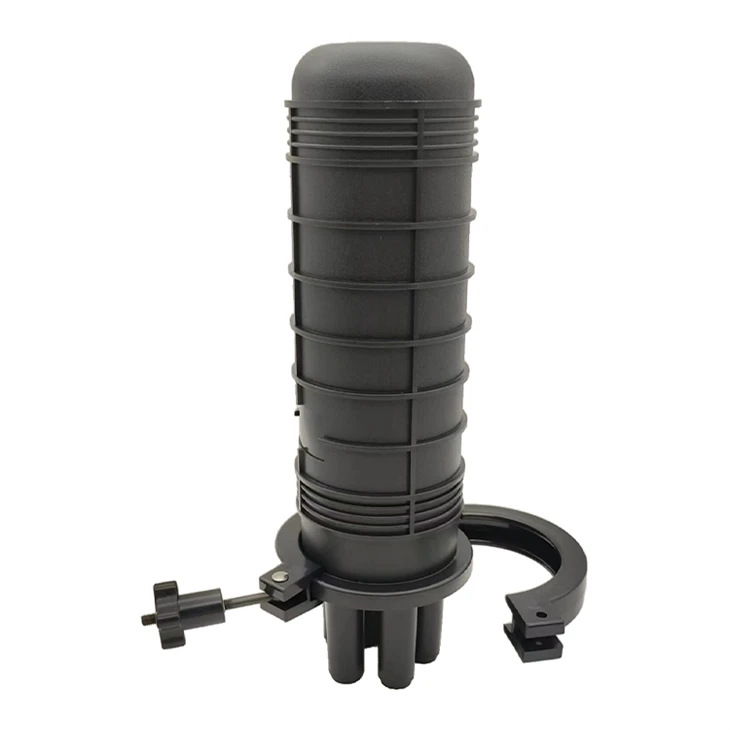

1. Lub kaw casing yog ua los ntawm cov yas engineering zoo, thiab zoo
kev ua tau zoo ntawm kev tiv thaiv - yaig tawm tsam cov kua qaub thiab alkali ntsev, tiv thaiv - kev laus, thiab
raws li tus tsos thiab txhim khu kev qha mechanical qauv.
2.Cov qauv siv tshuab yog txhim khu kev qha thiab muaj kev ua tau zoo ntawm kev tiv thaiv
ib puag ncig qus thiab kev hloov pauv huab cua hnyav thiab ua haujlwm hnyav
ib puag ncig. Qib tiv thaiv mus txog IP68.
3.Cov kaw muaj feem xyuam rau ribbon hom optical cable thiab ntau
kho qhov muag kab.

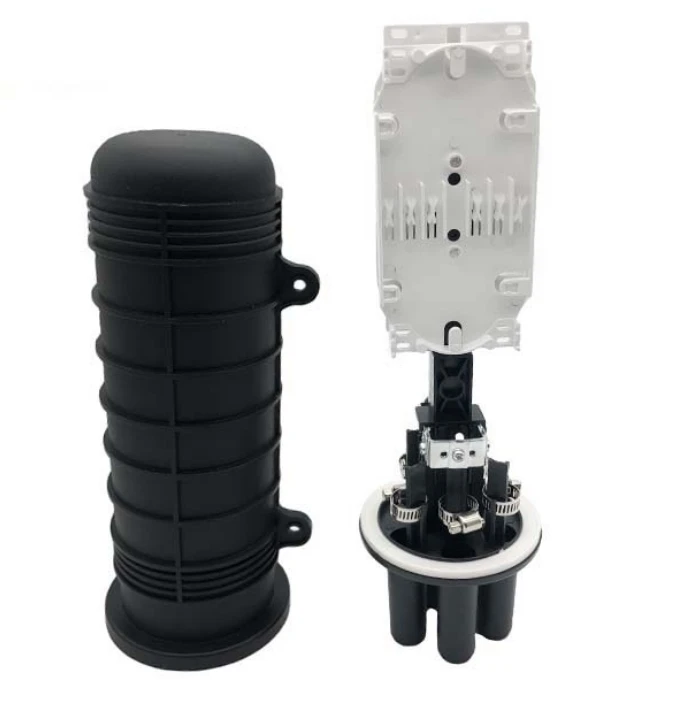

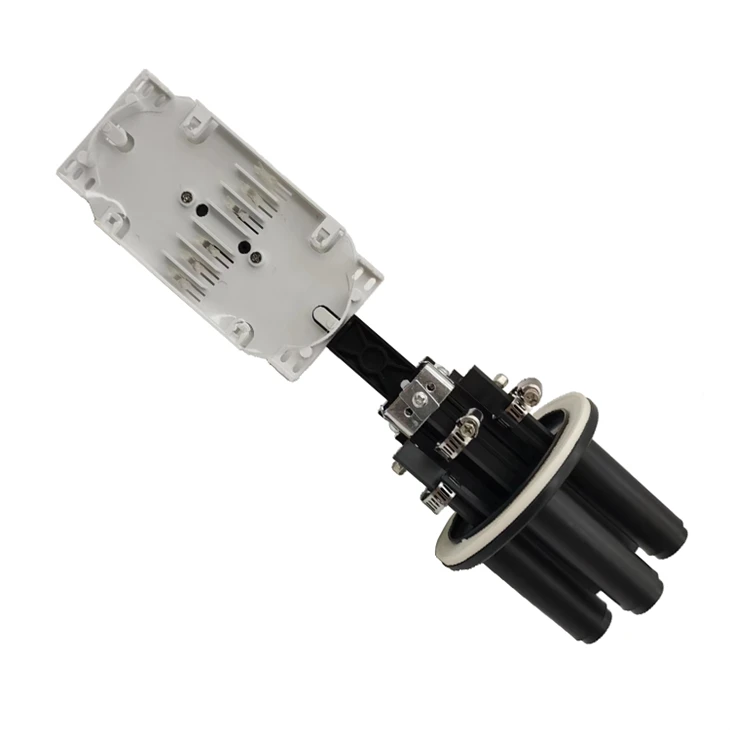

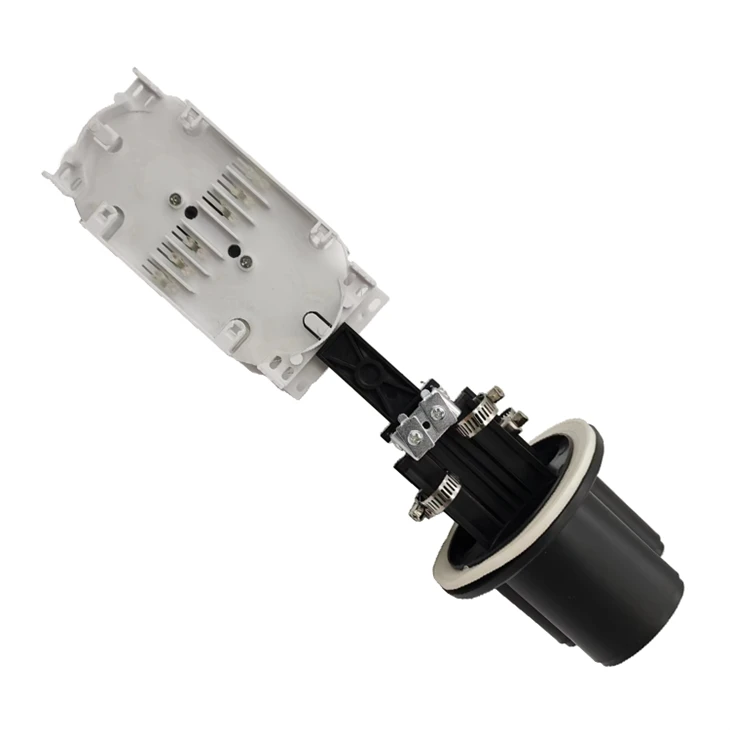

4.Cov tais sib txuas hauv qhov kaw yog tig tau - zoo li phau ntawv, thiab muaj
txaus curvature radius thiab qhov chaw rau winding optical fiber kom paub tseeb tias
qhov curvature radius rau optical winding 40mm.Txhua qhov kho qhov muag cable thiab fiber ntau
tuaj yeem ua haujlwm ntawm tus kheej.
5.Qhov kaw yog me me, muaj peev xwm loj thiab kev saib xyuas yooj yim.
Lub elastic roj hmab foob rings nyob rau hauv lub kaw yog zoo sealing thiab
hws- pov thawj kev ua tau zoo.
6.Lub casing tuaj yeem rov qhib dua yam tsis muaj cua nkag. Tsis muaj cuab yeej tshwj xeeb
yuav tsum tau. Kev ua haujlwm yog yooj yim thiab yooj yim. Cov cua valve yog muab rau
kaw thiab siv los xyuas qhov kev ua tau zoo sealing.
Technical Specifications
- Foob kev ua tau zoo: tom qab lub thawv kaw lawm, nce mus rau 100kPa sab hauv (kev nce nqi tsuas yog siv rau cov qauv nrog lub qhov cua), thiab tom qab ntawd tsau rau hauv dej ntawm qhov kub thiab txias, tom qab 15 feeb ntawm kev soj ntsuam tas li, tsis muaj npuas kom dhau.
- Rwb thaiv tsev tsis kam: rwb thaiv tsev tsis kam ntawm cov hlau ua haujlwm thiab lub ntiaj teb yog ntau dua 20kMΩ.
- Pressurization: tsis muaj kev tawg lossis flashover hauv qab 15kVdc / 1min ntawm cov hlau ua haujlwm thiab lub ntiaj teb.
- Qhov curvature vojvoog ntawm cov fiber ntau 40 hli, tsis muaj kev poob ntxiv hauv lub tais splice.
- Nws tuaj yeem dais lub axial tensile lub zog tsis pub tsawg tshaj 1000N.
- Lub neej ua haujlwm: 25 xyoo.
- Lwm qhov kev ua tau zoo yog tag nrho raws li qhov yuav tsum tau ua ntawm tus qauv YD / T814-1998.

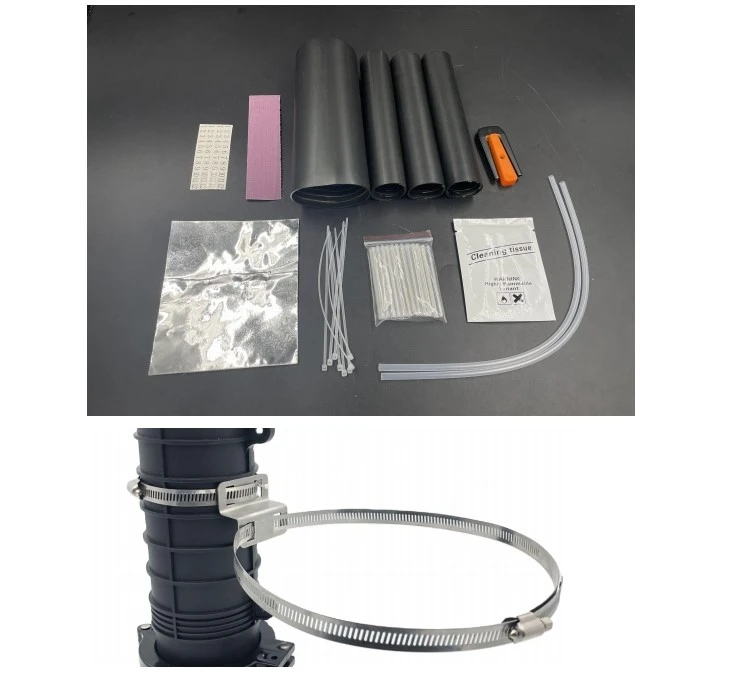

Standard Accessories
Tag Paper: 1 pcs
Sand ntawv: 1pcs
Nyiaj ntawv: 1pcs
Cable khi: 3mm * 10mm 8pcs
Thaum tshav kub kub -shrink tes tsho: 1.0mm * 3mm * 60mm 48pcs
Kub shrink tubing: 1 hnab
Fiber tiv thaiv tube: 2 pcs
Ntxuav cov ntaub so ntswg: 1pcs

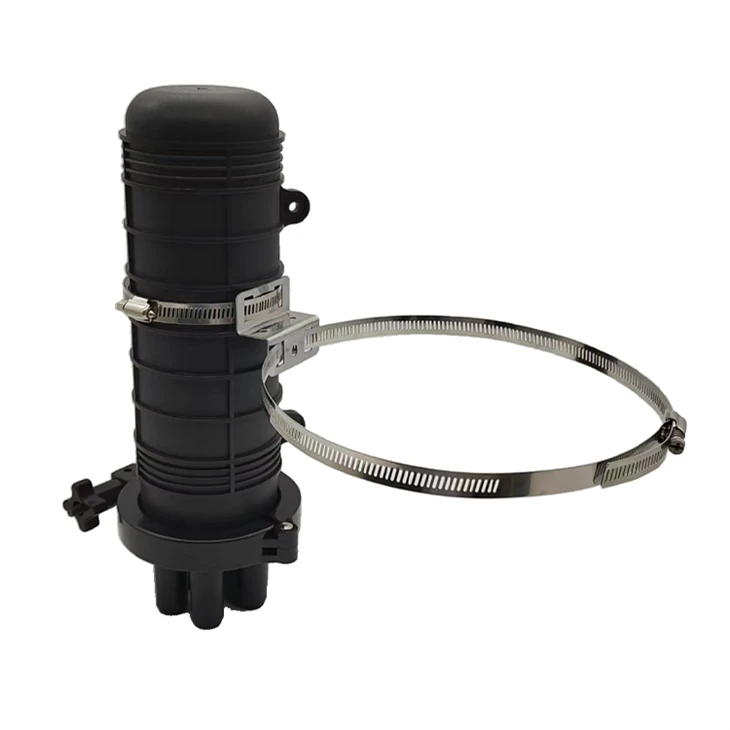

Ncej accessories: 1pcs ntawv hlau thiab 2 pcs hoop (Optional Accessories)
Dab tsi yog cov ntaub ntawv sib kis ceev ntawm 48-core fiber optic cable?
Cov ntaub ntawv kis ceev yog nyob ntawm yam xws li cov khoom siv network thiab cov txheej txheem siv. Txawm li cas los xij, fiber ntau optic cables tuaj yeem txhawb kev nrawm xws li Mbps mus rau ntau Gbps lossis txawm Tbps, nyob ntawm kev txhim kho thev naus laus zis thiab kev teeb tsa network.
Puas muaj qee qhov kev txiav txim siab tshwj xeeb rau kev txiav tawm 48-core fiber optic cables?
Kev txiav yuav tsum ua tib zoo ua kom tsis txhob muaj teeb liab poob lossis degradation. Siv cov khoom sib txuas tsim nyog thiab cov txheej txheem txiav tawm raws li cov chaw tsim khoom cov txheej txheem, thiab ua kom zoo tom qab txiav tawm kom ntseeg tau tias kev ua haujlwm zoo.
48-core fiber optic cables puas tuaj yeem siv rau kev teeb tsa sab nraum zoov?
Yog lawm, tab sis lawv yuav xav tau kev tiv thaiv ntxiv xws li cov tsho armored los yog cov kav dej kom tiv thaiv ib puag ncig xws li ya raws, qhov kub thiab txias, thiab kev puas tsuaj rau lub cev.
FAQ
Q: Koj ua li cas thiaj li ua tau zoo thiab kev ntseeg siab ntawm 48-core fiber optic cables?
A: Xyuas kom muaj kev txhim kho kom zoo los ntawm cov kws tshaj lij uas tau lees paub, siv cov khoom zoo, ua haujlwm tsis tu ncua thiab kev saib xyuas, thiab ua raws li kev lag luam kev coj ua zoo tshaj plaws rau kev sib txuas ntawm fiber ntau.
Q: Dab tsi yog qhov sib txawv ntawm 48-core fiber optic cables muaj?
A: Muaj ntau hom, suav nrog ib qho -mode thiab ntau- hom cables, nrog rau qhov sib txawv ntawm cov tub ntxhais loj, kev sib kis deb, thiab muaj peev xwm bandwidth. Qhov kev xaiv yog nyob ntawm qhov kev thov tshwj xeeb.
Q: Yuav ua li cas yog 48-core fiber optic cables ntsia thiab tswj?
A: Kev txhim kho thiab tu cov txheej txheem zoo ib yam li cov qauv fiber ntau optic cables. Kev tswj kom raug, txiav tawm, thiab cov txheej txheem kuaj xyuas yog qhov tseem ceeb rau kev ua haujlwm zoo thiab kev ntseeg siab. Kev saib xyuas yuav suav nrog kev tshuaj xyuas ib ntus, kev tu lub connector, thiab kev daws teeb meem.
