Kev piav qhia

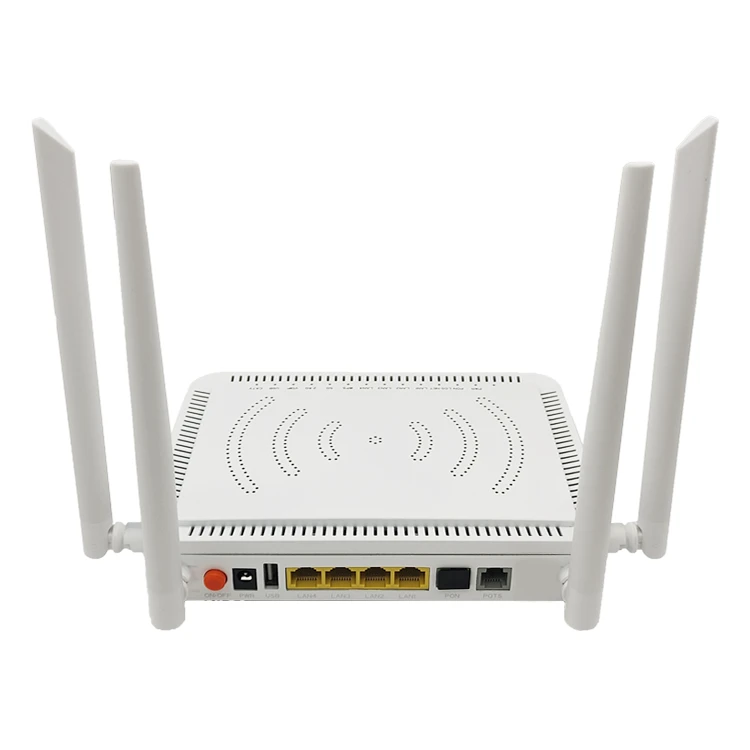

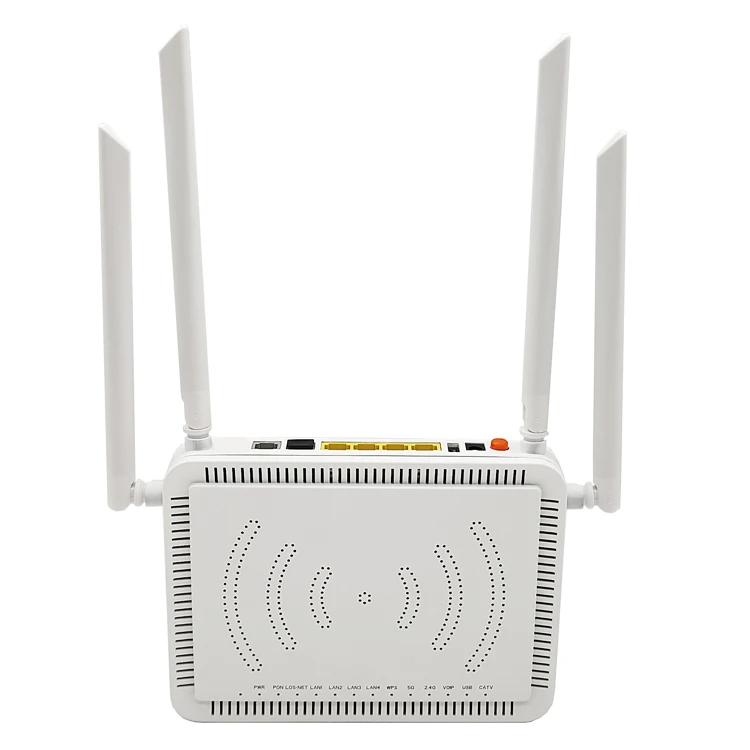

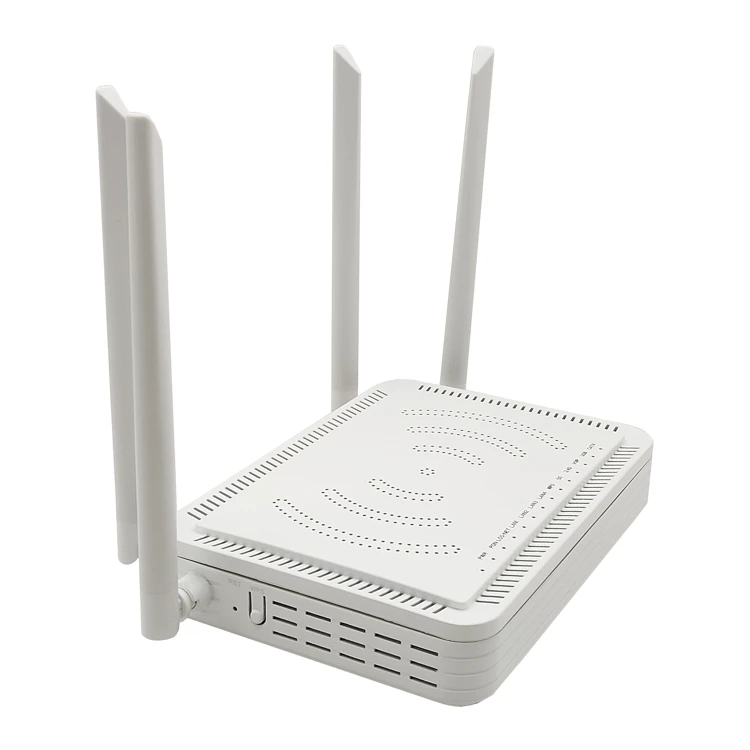

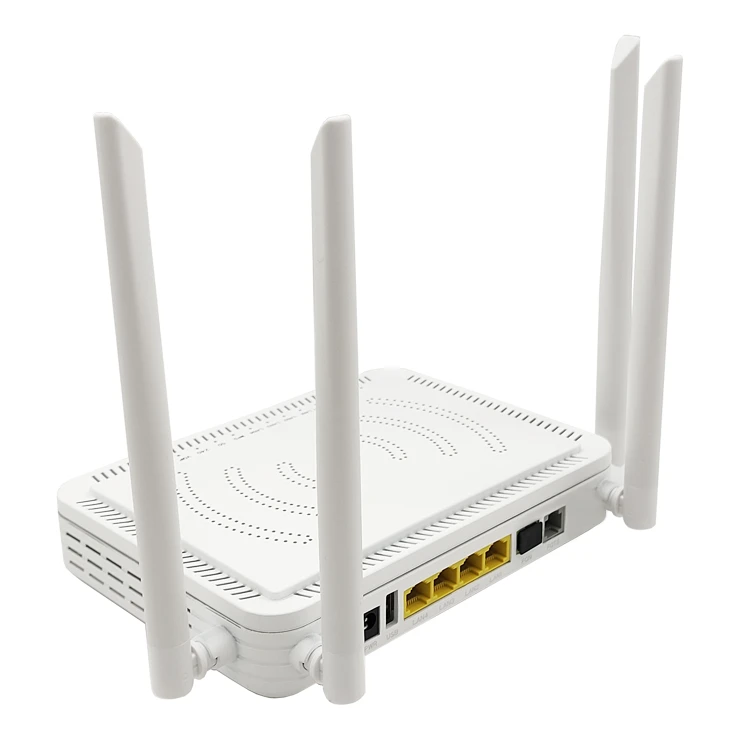

GPU 6157 ONU yog tus neeg siv sab khoom siv nrog ua-hauv ob- txheej txheej hloov pauv thiab peb - txheej txheej routing muaj nuj nqi. Nws muaj cov qauv compact thiab kev ua tau zoo heev, ua rau nws siab -kev ua tau zoo, qis- zog FTTH optical network. Zoo heev rau daim ntawv thov kev xav tau ntawm ntau yam kev pabcuam hauv FTTH networking scenarios ntawm ntau tus tswv.
GPU 6157 yog XPON cov khoom lag luam uas tuaj yeem hloov kho rau EPON thiab GPON tes hauj lwm yam tsis tas yuav hloov cov khoom siv thiab firmware.
Nta
| Tus neeg siv interface |
4 * 10/100/1000M RJ45 chaw nres nkoj 1 * POV 1 * USB 300 Mbps (2.4GHz) / 866 Mbps (5GHz) |
| PON |
EPON & GPON hom hloov kho Hom lnterface: SC-APC Kev ruaj ntseg: ONU authentication mechanism Network coverage vojvoog: 20KM
GPON: nce 1.25Gbps / downstream 2.5Gbps Optical txais rhiab heev: -7dBm ~ -28dBm Lub teeb hluav taws xob txuas ntxiv: 0.5dBm ~ +5dBm
EPON: nce 1.25Gbps / downstream 1.25Gbps Optical txais rhiab heev: -7dBm ~ -27dBm Lub teeb hluav taws xob txuas ntxiv: 0dBm ~ 4dBm |
| Ethernet | 4 * 10/100/1000M adaptive Full/half duplex hom RJ45 connector Auto MDI/MDI-X 100 m nrug |
| Loj | 160mm (L) × 112mm (W) × 30mm (H) |
| Ib puag ncig |
Ua haujlwm kub: 0 ° -60 ° C Kev khiav dej num: 10% ~ 85% tsis yog -condensing Cia kub: -40℃-80 degree Cia cov av noo: 5% -95% tsis-condensing |
| Fais fab mov |
12V 1.5A DC Lub zog interface loj: 2.1mm / 5.5mm |
| Kev siv fais fab | <12W |
| POTS Chaw nres nkoj |
1 * RJ11 Max 1 km nrug Lub nplhaib sib npaug, 55V RMS |
| Kev tswj hwm | WEB/TELNET/TR069/OMCI/OAM |
