MOCA 2.5 Coax

NTA

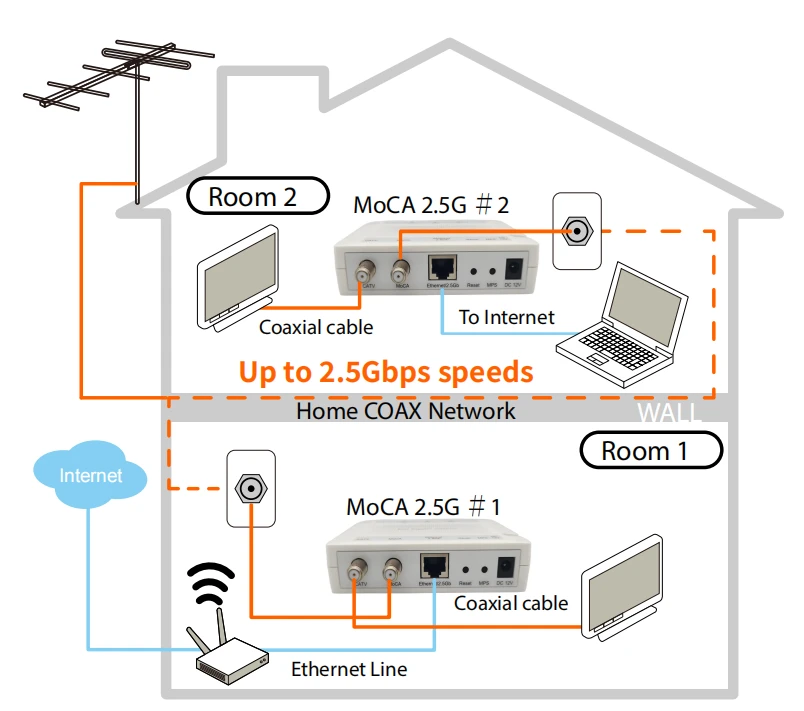

• MoCA (Multimedia dhau Coax Alliance) Siv cov coaxial cable uas twb muaj lawm (Co- muaj nyob nrog cable, av, av, satellite teeb liab)
• Lub siab -kev hloov pauv ceev ntawm 2500Mbps txawm ua rau nws muaj peev xwm xa cov yeeb yaj kiab hauv 4K zoo.
• Kev khiav hauj lwm zaus D-Band(1125 ~ 1675MHz), Mus txog 16 MoCA-pab ntaus ntawv tuaj yeem txuas nrog tib lub sijhawm.

SPECIFICATIONS

SYSTEM

• Txuj:MoCA 2.5G: Cov ntaub ntawv tseeb ceev: Txog 2.5 Gbps.2.5Gbps los ntawm lub neej ntawd; 3Gbps txhim kho hom.Rov qab- sib xws nrog MoCA 2.0, 1.1, thiab 1.0
• Kis ceev:Ethernet 10/100/1000/2500 (Mbps)
• Modulation Carrier:OFDM 1024 QAM, TDD
• Channel bandwidth:5 X 100 MHz
• CATV tso zis:Kev khiav hauj lwm zaus: 54MHz-1002MHz Networking Protocols:....2.5GBASE-T(IEEE 802.3bz, NBASE-T)
• Zaus Band:400-1675 MHz

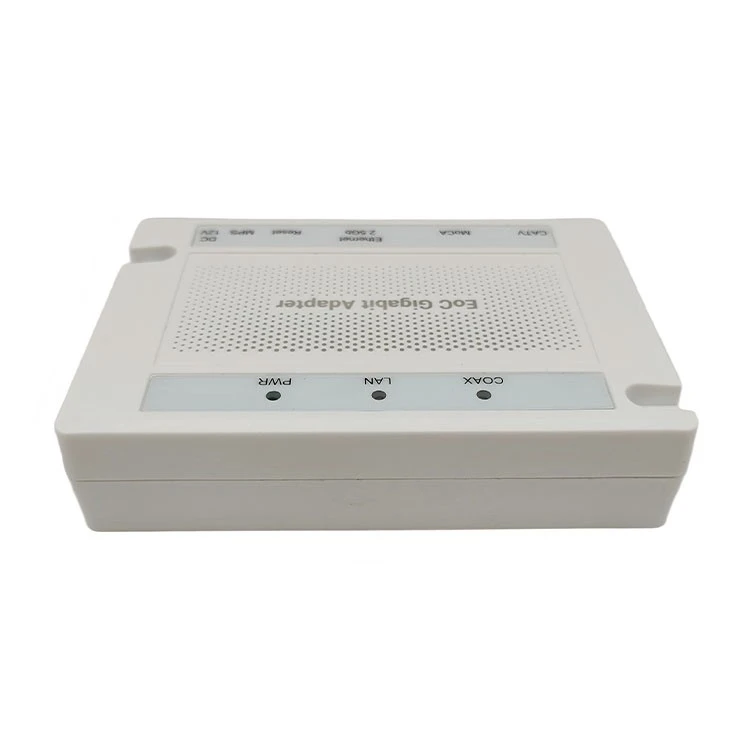

LED Indicators thiab Khawm

• LED Qhov taw qhia:Hwj chim On/blinking ceev, slow_Green Ethernet txuas On/Off Coax On/Off
• khawm tswj:MoCA tiv thaiv teeb

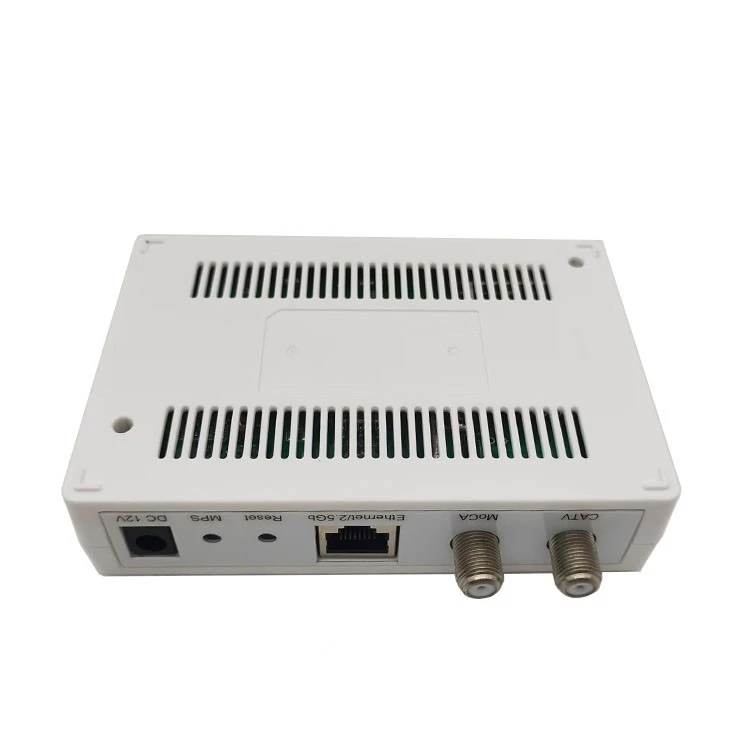

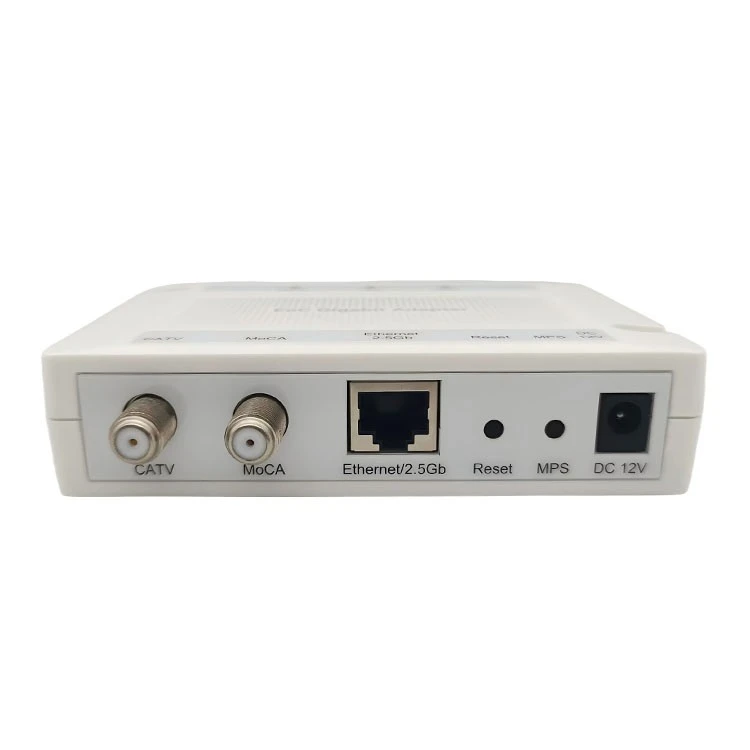

Cov khoom sib txuas

• MoCA Chaw nres nkoj:F-poj niam, 75 ohms
• CATV Chaw nres nkoj:F-poj niam, 75 ohms
• LAN Connector:RJ 45
• DC:DC Jack

 General

• Kev Siv Hluav Taws Xob:12 VDC
• Qhov Loj:121 x 80 x 28 mm
• Environmental rau kev ua haujlwm:

Kub: 5℃- 40 degree

Tus txheeb ze humidity: 80% @ 30 degree
