Kev piav qhia

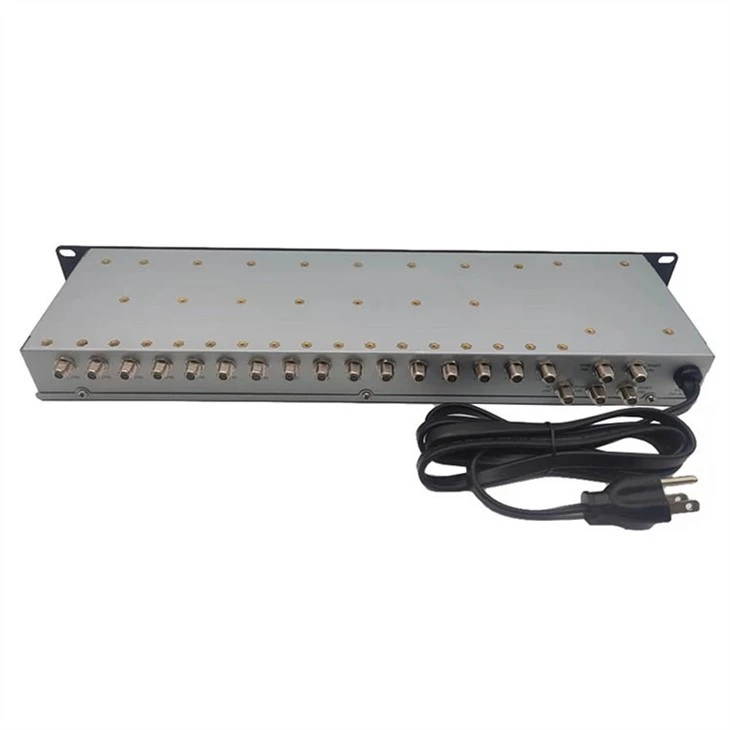

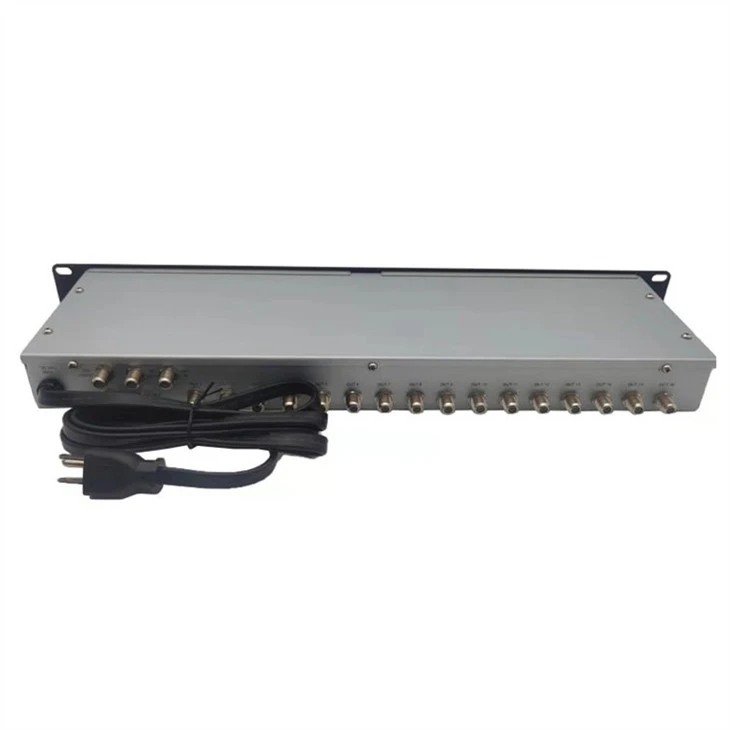

Lub khib mounted MSR-516 yog sib xws nrog DIRECTV theem peb lub tais txais tos los ntawm kev tso cai 4 LNB inputs thiab 1 kav hlau txais xov thiab muab 16 outputs . 5X16 Rack Mounted Satellite Multiswitch Ib qho tas li 22 kHz tone yog muab rau ntawm 2 ntawm cov khoom siv hluav taws xob thiab LNB rau 14 thiab volt 14 thiab volt. hloov.

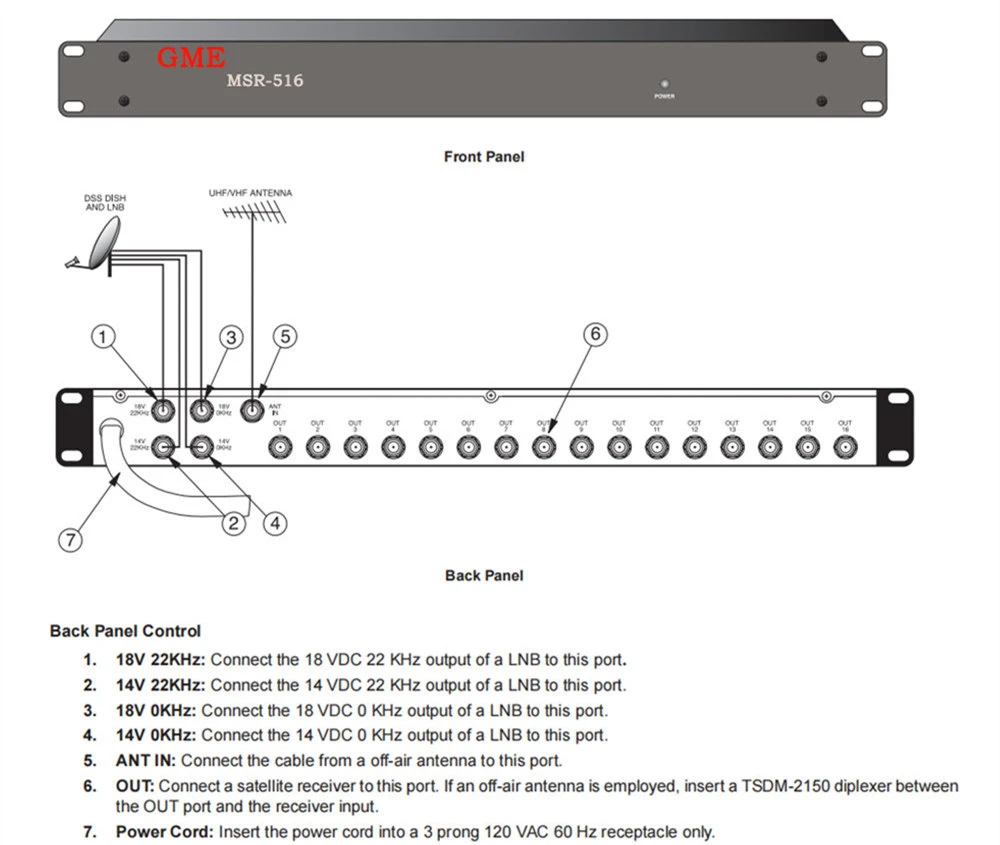

- 5 input yooj yim interface tsim muab 4 satellite polarity inputs ntxiv rau 1 tawm cua kav hlau txais xov thiab 16 outputs, rau kev ceev installation.
- 5X16 Rack Mounted Satellite Multiswitch Wide zaus ntau yam 40 ~ 2150MHz.
- Tau tshaj DIRECTV Phase III thiab lwm lub tshuab txais tos uas siv 22kHz suab hloov pauv PIN diode matrix txo cov sijhawm hloov pauv polarity thiab cov khoom siv digital, muab cov duab zoo ib yam.
- 14 lossis 18 DC volts thiab 22kHz lub suab tau muab los ua lub zog LNB thiab ua haujlwm hloov pauv sab hauv Built-hauv amplifier them nyiaj rau qhov kev poob qis, txo qis kev xav tau ntawm cov khoom siv hluav taws xob sab nraudHeavy- lub luag haujlwm siab ua haujlwm sab hauv fais fab tshem tawm cov kev xav tau ntau dhau tam sim no ntawm receivers.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDMS-003-2 (MSR-516) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
FREQ. RANGE |
|
|
|
|
KUV IN |
|
|
54-806 MHz |
|
SAT IN |
|
|
950-2150 MHz |
|
Tawm |
|
|
54 ~ 2150 MHz |
|
INSERITION LOSS / (NTAWM IN) |
0dB ib |
-1.5dB Max. |
54 ~ 550MHz |
|
0dB ib |
-2.5dB Max. |
551 ~ 806 MHz |
|
|
TAU TXAIS (SAT IN) |
4dB ib |
2 dB Min. |
950 ~ 1750 MHz |
|
2 dB ib |
0 dB Min |
1751 ~ 2150 MHz |
|
|
MUAB CAIS NYOB IB LEEG |
|
|
|
|
CROSS POLARIZATION |
- 30 dB |
- 25 dB Min. |
950 ~ 2150 MHz |
|
TU SIAB |
- 15 dB |
- 14 dB Min. |
54 ~ 806 MHz |
|
- 30 dB |
- 28 dB Min. |
950 ~ 2150 MHz |
|
|
SAT IN TO SAT IN |
- 40 dB |
- 35 dB Min. |
950 ~ 2150 MHz |
|
STOP BAND ATTENUATION |
2 0 dB |
15 dB Min |
ANT PORT @ AT 950 MHz |
|
|
2 0 dB |
15 dB Min |
SAT PORT @ AT 806 MHz |
|
Rov Los Los |
|
|
|
|
INPUT/OUTPUT |
- 6 dB |
- 5dB Min |
54 ~ 806 MHz |
|
- 10 dB |
- 8 dB Min |
950 ~ 1450 MHz |
|
|
- 8 dB |
- 6 dB Min |
1451 ~ 2150 MHz |
|
|
NPAU SUAV |
|
|
|
|
(1 dB COMPRESSION) |
|
|
|
|
KUV IN |
108 dBV |
106 dBuV Min |
Ntawm 67.25 MHz input |
|
SAT IN |
110 dBuV |
108 dBuV Min |
AT 950 MHz input |
|
LHCP/RHCP SWITHING POINT |
|
14.0 ~ 15.0VDC |
|
|
MULTI-SW 22KHz SWITHING POINT |
|
150 ~ 300Vp -p |
Square Wave Test Signal |
|
|
|
|
Tsis muaj Mechanical |
|
Tawm 22KHz SINGNAL |
|
|
|
|
CHARACTER FREQ. |
|
22 ± 4KHz |
|
|
AMPLITUDE |
|
650 ± 250mVp -p |
|
|
VOLTAGE/CURRENT BIAS |
|
|
|
|
FIXED LNB BIAS VOLTAGE |
|
|
|
|
13V / 0KHz 13V / 22KHz Chaw nres nkoj |
|
12.8 ~ 13.5VDC |
0 ~ 300mA |
|
18V / 0KHz 18V / 22KHz Chaw nres nkoj |
|
17.9 ~ 18.9VDC |
0 ~ 450mA |
|
POWER input |
|
120VAC ± 10% 60Hz |
|
|
CONNECTOR |
|
"F" Hom Poj Niam |
TXHUA PORTS |
|
IMPEDANCE |
|
7 5 awm |
TXHUA PORTS |
