Kev piav qhia
• Lub 4x8 HDTV Digital Multiswitch yog kaw kom nws tuaj yeem siv hauv tsev lossis sab nraum zoov. Nws ua haujlwm nyob rau hauv qhov kub thiab txias ntawm -34℃txog +60℃. Nws muaj lub hwj chim- ntawm qhov taw qhia los pab txhim kho lossis daws teeb meem.

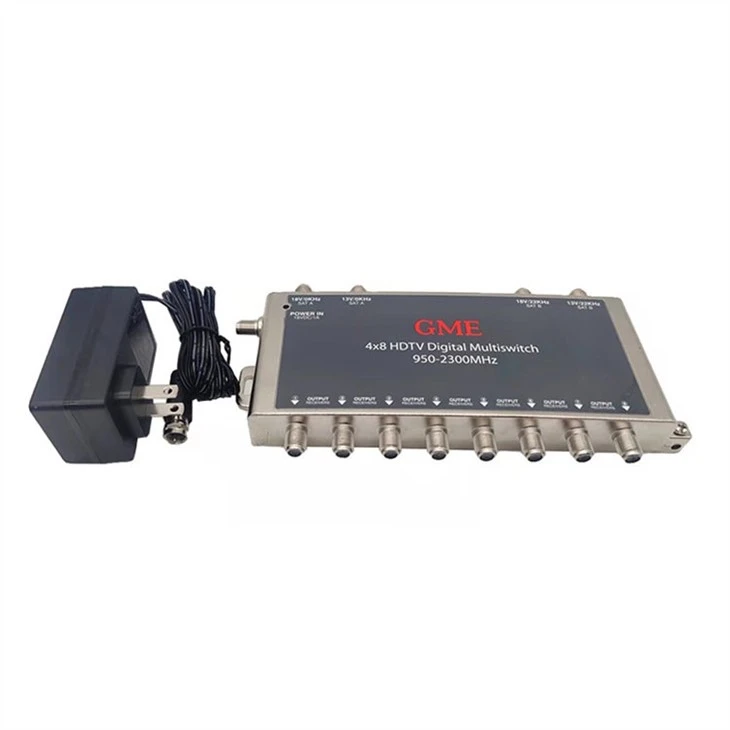

• AC/DC Module yog nruab nrog lub re-settable thermal circuit breaker los tiv thaiv kev puas tsuaj vim luv luv thaum lub sij hawm installation.

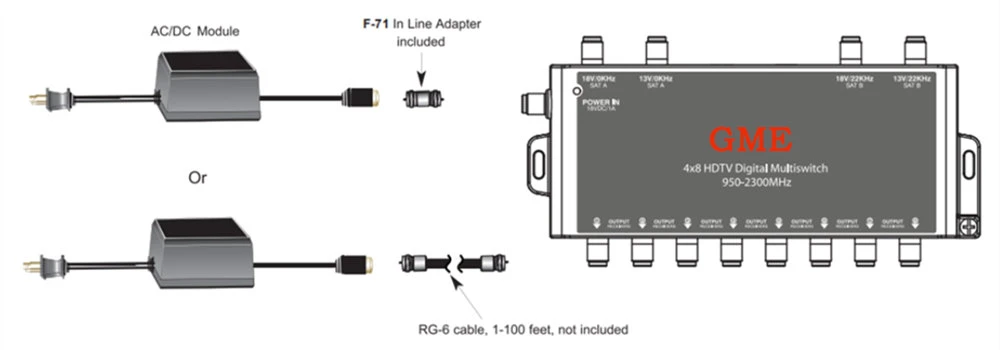

• AC/DC Module yog tsim los rau kev txuas mus rau 4048 Multiswitch ncaj qha, los yog nyob deb ntawm ib qho uas muaj RG -6 cable, mus txog 100 ko taw. F-71 FF adapter suav nrog.
Qhov kev hloov no tso cai rau koj ntxiv 5-8 receivers rau koj Shaw Direct satellite tais uas twb muaj lawm.
Txuas mus txog yim Shaw Direct lossis FTA satellite txais hauv koj lub tsev nrog 4x8 HDTV Digital Multiswitch.
Muab lub TV tso rau hauv txhua chav koj nyiam nrog qhov zoo tshaj plaws hloov pauv tau pom zoo siv nrog Shaw Direct satellite systems.
- Txuas mus txog yim lub satellite receivers rau koj ib qho multi- satellite tais nrog plaub lub LNBF lossis ob lub satellite tais diav sib cais nrog ob qhov tso tawm LNBF's.
- F- txuas fais fab mov.
- Rugged, waterproof switchable tuaj yeem siv sab hauv tsev lossis sab nraum zoov.
CEEB TOOM: Multiswitch tsis yog tsim los siv los ua ib qho splitter. Tag nrho 4 coaxial xov hlau los ntawm koj lub phaj satellite (es) yuav tsum tau txuas rau qhov kev hloov pauv no kom ua haujlwm zoo.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDMS-002 (4048) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
1. FREQ. RANGE |
|
|
|
|
NYIAJ RAU HAUV QHOV CHAW UA HAUJ LWM |
|
950 ~ 2300 MHz |
|
|
2. INSERITION LOSS |
1 dB ib |
- 0.5 dB MAX. |
950 ~ 1450 MHz |
|
- 1.5 dB |
- 2.5 dB MAX. |
1451 ~ 2150 MHz |
|
|
-2.5 dB |
-3.0 dB MAX |
2151-2300 MHz |
|
|
3. HLUB |
4 dB ib |
6 dB MAX. (± 3 dB) |
950 ~ 1450 MHz |
|
4. ISOLATION |
6 dB ib |
8 dB MAX. (± 4 dB) |
1451 ~ 2300 MHz |
|
SAT IN TO SAT IN |
- 35 dB |
- 30 dB MIN. |
950 ~ 2300 MHz |
|
NTAU NTAU |
- 30 dB |
- 25 dB MIN. |
950 ~ 2300 MHz |
|
CROSS POLARIZATION SAIB SATELLITES |
- 30 dB |
- 26 dB MIN. |
950 ~ 1450 MHz |
|
SAELLITES TSHAJ PLAWS |
- 35 dB |
- 30 dB MIN |
950 ~ 1450 MHz |
|
5. Rov qab poob |
|
|
|
|
NPUT |
- 10 dB |
- 8 dB MIN. |
950 ~ 1450 MHz |
|
- 10 dB |
- 7 dB MIN. |
1451 ~ 2300 MHz |
|
|
OUTPUT |
- 10 dB |
- 8 dB MIN |
950 ~ 1450 MHz |
|
- 8 dB |
- 6 dB MIN. |
1451 ~ 2300 MHz |
|
|
6.INPUT CAPABILTTY |
|
|
|
|
1 dB COMPRESSION |
102 dBuV ua |
100 dBuV max |
950 MHz input |
|
7. LHCP/RHCP SWITCHING POINT |
|
14.0 ~ 14.7VDC |
|
|
8. MULTI-SW 22KHz SWITCHING POINT |
|
150-300mVp-p |
SINE WAVE TEST SIGNAL NO MECHANICAL RELAY |
|
10. NTAU 22KHz SIGNAL |
|
|
|
|
CHARACTER FREQ. |
|
22 ± 4 KHz |
|
|
AMPLITUDE |
|
650 ± 250mVp -p |
|
|
11. Kev siv tam sim no |
|
90mA MAX. |
RAU SIV RX PORT |
|
12. VOLTAGE / CURRENT BIAS |
|
|
|
|
13V / 0KHz thiab 13V / 22KHz PORT |
150-200mA |
0 ~ 300mA |
12.8V ~ 13.5VDC |
|
18V / 0KHz thiab 18V / 22KHz PORT |
150-200mA |
0-450mA |
17.9V-18.9VDC |
|
13. KHAWV KOOB |
|
HOM "F" FEMALE |
TXHUA PORTS |
|
14. ADAPTER Hwj chim |
|
|
|
|
NPUT |
|
100/240VAC |
|
|
OUTPUT |
|
18VDC / 1A |
|
