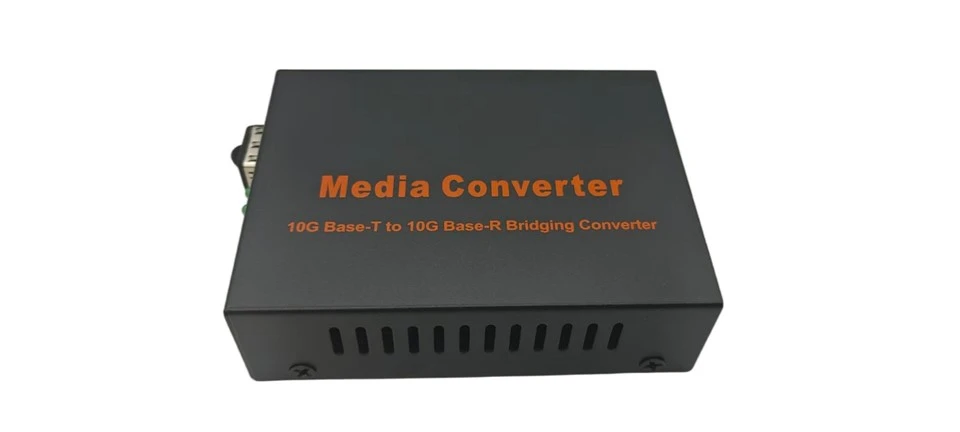

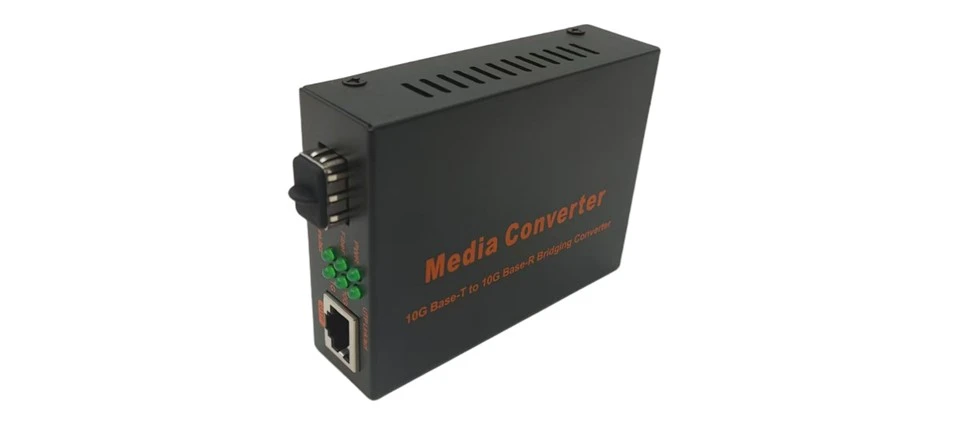

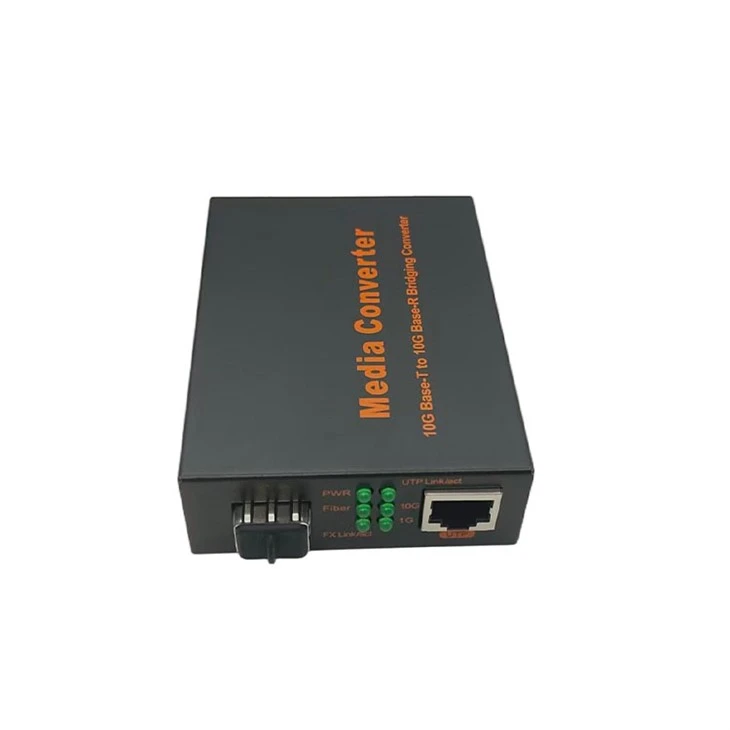

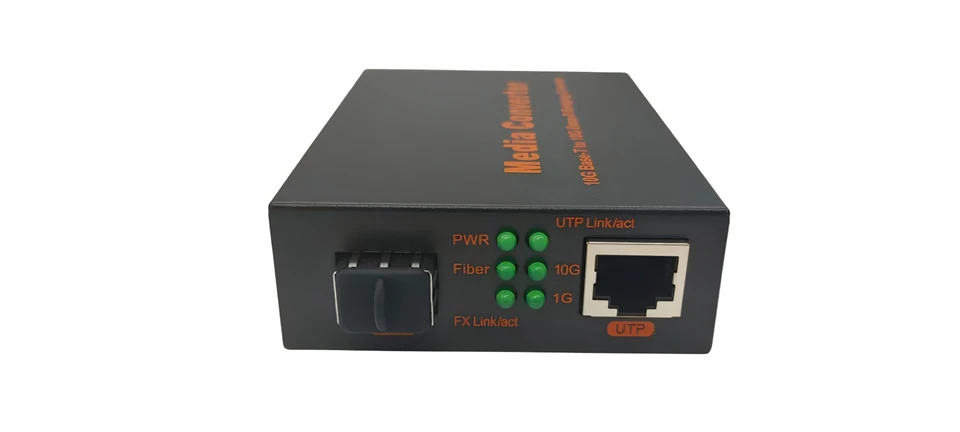

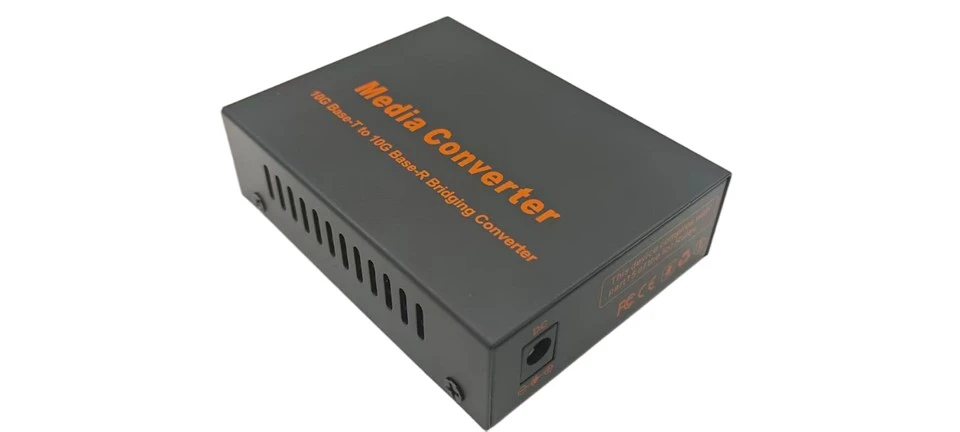

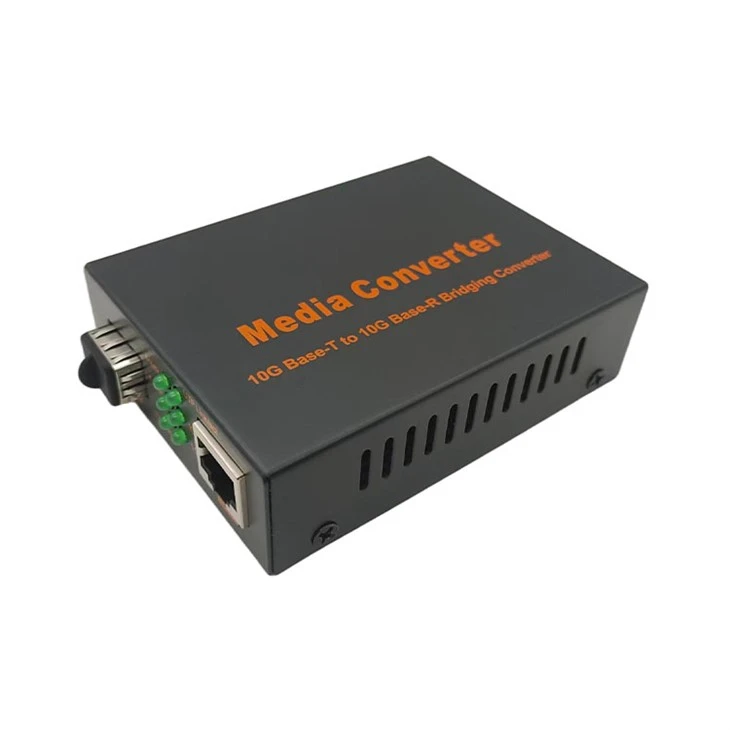

10G Media Converter

Nta

IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX/FX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3ae 10GBASE-T
IEEE 802.3x Full -Duplex Flow Control
Txhawb nqa puv -duplex/ib nrab- duplex ua haujlwm nrog kev sib tham tsis siv neeg ua haujlwm;
Qhov siab tshaj plaws kis tau tus mob mus txog 120 kilometers (ib hom);
Ua kom tiav cov xwm txheej LED qhia rau kev kuaj xyuas lub network yooj yim thiab kuaj xyuas qhov txhaum;
Tsawg cua sov tsim, ruaj khov thiab txhim khu kev qha;
Txhawb SFP / SFP + DMI

Specifications

Interfaces:

• 1 chaw nres nkoj hluav taws xob (RJ45) rau 10/100/1G/2.5G/5G/10G Base-Tx
• 1 optical chaw nres nkoj rau 1G/10G Base-Fx

SFP Chaw nres nkoj:

• Tus nqi: 1G / 10G Mbps
• Wavelength: Tag nrho cov wavelengths teev los ntawm

ITU-T

• Kev ncua deb: Ib hom: 3 ~ 120km; Multi-mode: 550m/2km
• Hom interface: SFP / SFP +
• Core Standard: Ib hom 9/125μm; 50/125 μm; 62.5 / 125μm Hluav Taws Xob Chaw nres nkoj yam ntxwv

RJ45 Chaw nres nkoj:

• Tus nqi: 10/100/1G/2.5G/5G/10G Mbps adaptive
• Hom Duplex: Puv / Ib Nrab Duplex
• Hom interface: RJ-45
• Txoj kev sib txuas: Ncaj / Hla tau lees paub
• kis nrug deb: 100mProtocol Standards

Loj:

• Qhov Loj: 94 × 70 × 26mm (L × W × H)
• Net nyhav: 0.25Kg
• Ua haujlwm kub: -10 ~ +55 degree
• Ua haujlwm av noo: 5 ~ 95%
• Cia kub:-40 ~ +70 degree
• Cia cov av noo: 5 ~ 95%
