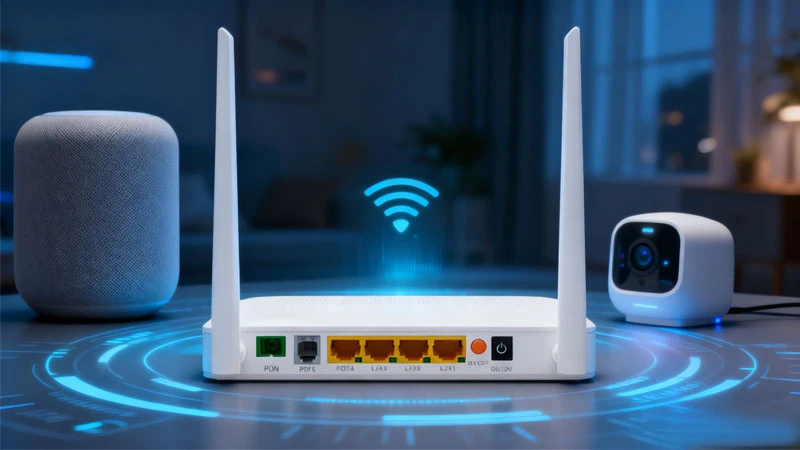

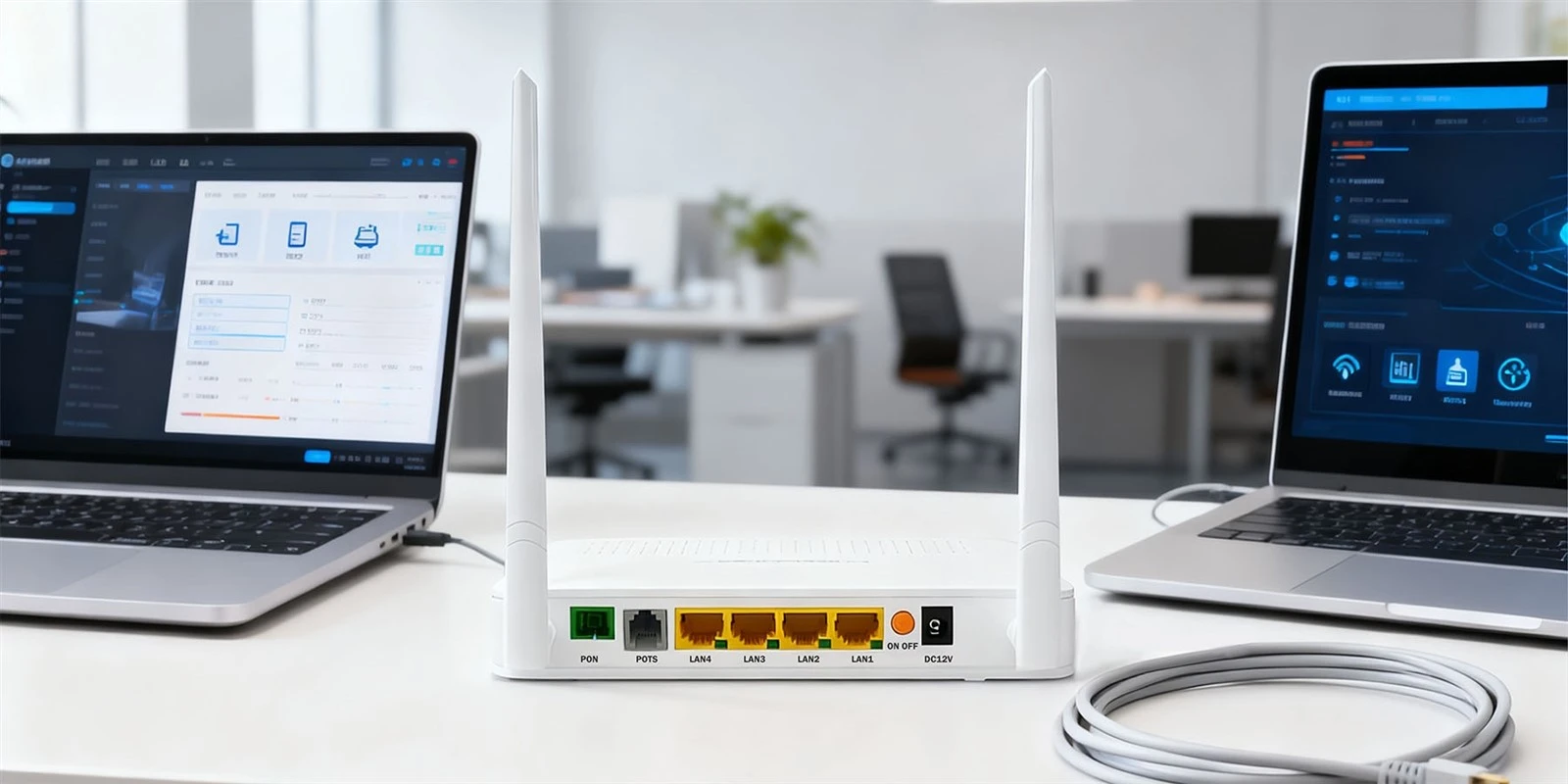

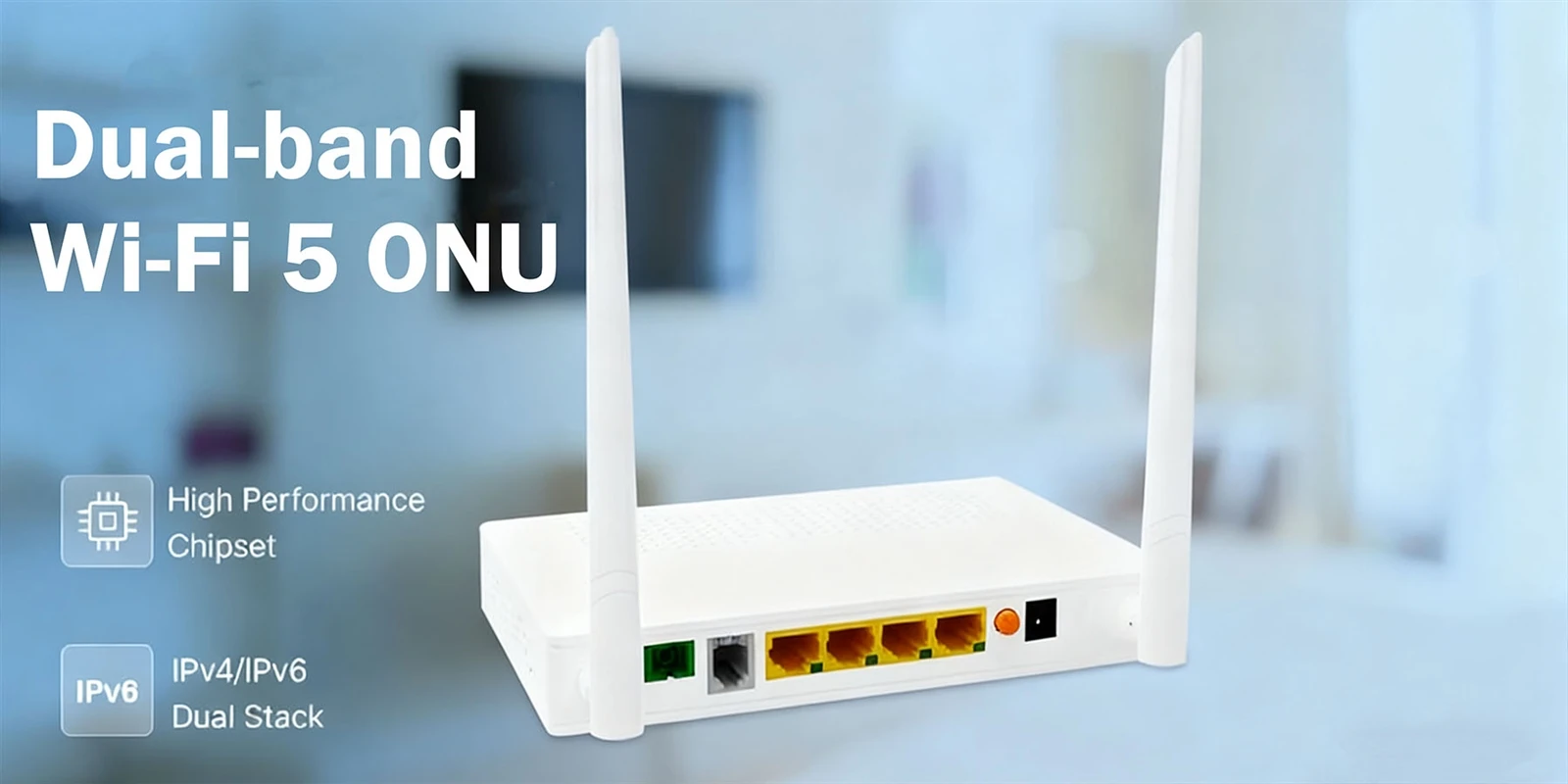

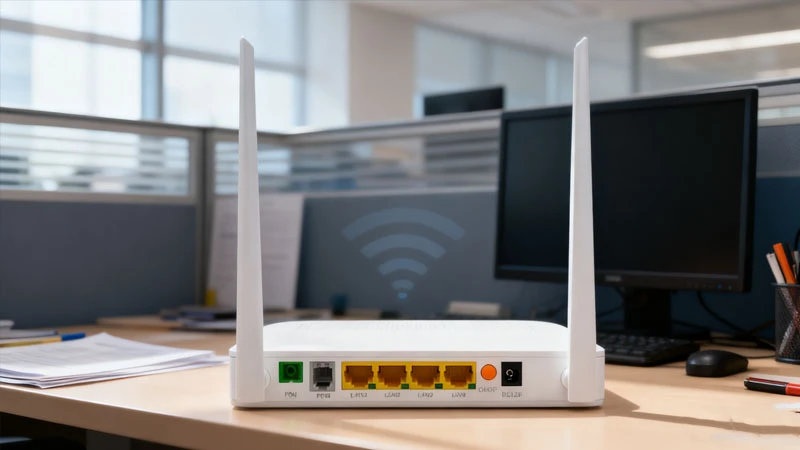

4Ge 1POTS AC WiFi USB3.0 router muab 4G kev txav mus los sai, kev sib koom ua ke VoIP xov tooj, dual-band AC WiFi rau 10+ cov khoom siv, thiab 5Gbps USB3.0 nthuav dav-tag nrho hauv ib qho sai sai, tus nqi -txuag pob.
Qhov zoo ntawm 4G 1POTS AC WiFi USB3.0 Router
Strong Mobility thiab Kev xa tawm sai:
Ua -hauv 4G module txhawb SIM daim npav ntsaws- thiab- ua si, tshem tawm kev cia siab ntawm kev ruaj ntseg broadband. Qhov zoo tshaj plaws rau cov cheeb tsam uas tsis muaj fiber ntau optic kev pab them nqi, nws yuav siv sij hawm li feeb los siv thiab muab kev nkag mus rau hauv network txhua sij hawm, nyob qhov twg.
Strong Mobility thiab Kev xa tawm sai:
Ib qho POTS interface txhawb nqa ib txwm siv xov tooj lossis VoIP, txo qhov xav tau cov khoom siv ntxiv. Nws tso cai rau tag nrho -hauv-ib qho "internet + hu" kev daws teeb meem, tshwj xeeb tshaj yog tsim rau lub suab- nyob ntawm cov neeg siv.
High-Speed Wireless Coverage thiab Multi-Device Support:
AC WiFi (txog 1300Mbps dual-band) muab qis-latency, siab-ceev wireless txuas nrog MU-MIMO thev naus laus zis, txhawb nqa 10+ cov khoom sib txuas ib txhij- zoo meej rau HD streaming thiab gaming.
Flexible USB 3.0 Expansion:
Nrog rau kev hloov ceev mus txog 5Gbps, nws txhawb nqa USB drives sab nraud lossis cov hard disks portable rau NAS sib koom khaws cia, lossis txuas 4G / 5G dongles ua cov txuas txuas ntxiv - pab txhawb cov ntaub ntawv thaub qab, cov ntaub ntawv nthuav dav, thiab txhim kho chaw ua haujlwm.
Nta
|
Hardware Parameter |
|
|
Dimension |
180mm × 120mm × 32mm (L × W × H) |
|
Net nyhav |
280g |
|
Kev ua haujlwm |
Ua haujlwm kub: -10 ~ +55 degree Kev khiav dej num: 5 ~ 95% (tsis yog -condensing) |
|
Kev khaws cia |
Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensing) |
|
Fais fab adapter |
DC12V, 1.5A, sab nraud AC-DC fais fab adapter |
|
Fais fab mov |
Tsawg dua lossis sib npaug li 12W |
|
Interface |
4GE+1POTS+WiFi 5+USB 3.0+CATV(optional) |
|
Qhov taw qhia |
PWR,LOS,PON,2.4G,5G,WAN,WPS,USB,Phone,LAN1-4,CATV(optional) |
|
Interface Parameter |
|
|
PON interface |
l 1XPON chaw nres nkoj (EPON PX20+ & GPON Class B+) l SC ib hom, SC / APC connector l TX optical zog: 0-+4dBm l RX rhiab heev: -27dBm l Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) l Transmission nrug: 20KM l Wavelength: TX 1310nm, RX1490nm |
|
Tus neeg siv interface |
l 4*GE, Auto-kev sib tham, RJ45 chaw nres nkoj l 1 POTS RJ11 Connector l 1 * USB 3.0 |
|
WLAN interface |
l Ua raws li IEEE802.11b/g/n/ac l WiFi: 2.4GHz, 5.8GHz 2 × 2, 3dBi kav hlau txais xov, tus nqi mus txog 1.167Gbps, Ntau SSID l TX zog: 2.4GHz: 18dBm; 5 GHz: 17 dBm l RX zog: 2.4GHz: HT40-MCS7 -71dBm; 5 GHz: VHT80 MCS9<-63dBm |
|
CATV interface (yeem) |
l Optical txais wavelength: 1550 ± 10nm l Optical input range: +2--18dBm l Optical reflection poob: Ntau dua lossis sib npaug li 40dB l RF zaus ntau: 47-1000MHz l RF tso zis impedance: 75Ω l RF tso zis theem thiab AGC ntau yam: Ntau dua lossis sib npaug rau 81 ± 2dBuv@+1--10dBm Ntau dua lossis sib npaug rau 79 ± 2dBuv @ 0--11dBm Ntau dua lossis sib npaug rau 77 ± 2dBuv@-1--12dBm Ntau dua lossis sib npaug rau 75 ± 2dBuv@-2--13dBm Ntau dua lossis sib npaug rau 73 ± 2dBuv@-3--14dBm Ntau dua lossis sib npaug rau 71 ± 2dBuv@-4--15dBm l MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input) |
|
Cov ntaub ntawv muaj nuj nqi |
|
|
O&M |
l OAM/OMCI,Telnet,WEB,TR069 l Txhawb nqa tag nrho kev tswj hwm ntawm HGU ua haujlwm los ntawm VSOL OLT |
|
Multicast |
l IGMP v1/v2/v3, IGMP snooping l IGMP Proxy l MLD v1/v2 snooping l MLD npe |
|
Wireless |
l Integrated 802.11b/g/n/ac l Authentication: WAP-PSK(TKIP)/WAP2-PSK(AES) l Txhawb Ntau SSID l Txhawb nqa zais SSID l Txhawb Mesh l Txhawb nqa mus txog 64 qhov kev sib txuas ntau tshaj plaws |
|
QoS |
l Txhawb 4 kab l Txhawb SP, WRR, 802.1P thiab DSCP |
|
L2 |
l Txhawb 802.1D & 802.1ad choj, 802.1Q VLAN |
|
VoIP |
l SIP thiab IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo tshem tawm, VAD / CNG, DTMF Relay l Kev Qhia Tus Neeg Hu / Hu Tos / Hu l Forwarding / Hu Transfer / Hu Hold / 3-txoj kev sablaj |
|
L3 |
l IPv4, IPv6 thiab IPv4 / IPv6 dual pawg l DHCP/PPPOE/Static l Static route, DHCP Server l NAT/DMZ/DDNS/Virtual Server |
|
Kev ruaj ntseg |
l Txhawb Firewall l Txhawb Mac lim Raws li MAC lossis URL l Txhawb ACL l Txhawb Kev Tshawb Nrhiav Loop |
|
Qhov system Muaj nuj nqi |
l Txhawb NTP (Network Time Protocol) l Txhawb Teem sij hawm ntaus ntawv rov pib dua l Txhawb Ping thiab Traceroute kuaj mob |

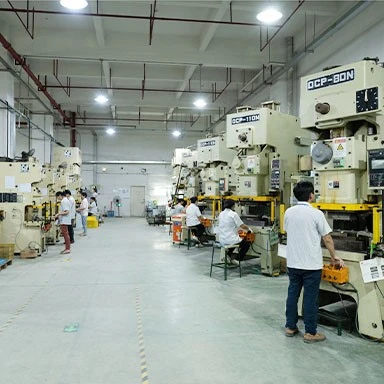

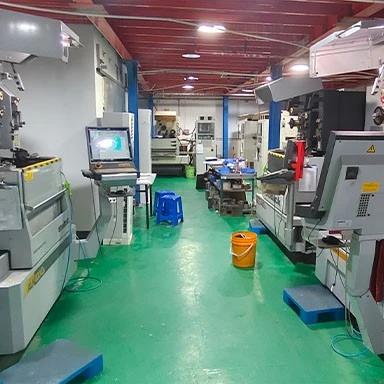

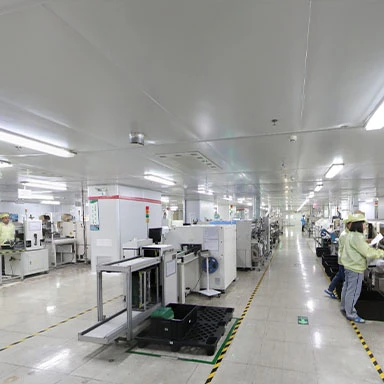

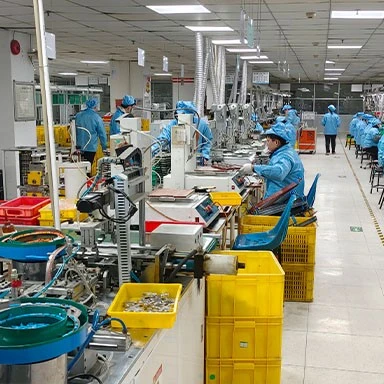

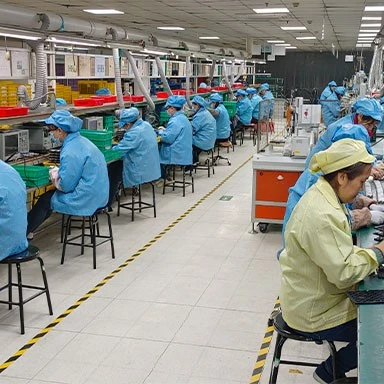

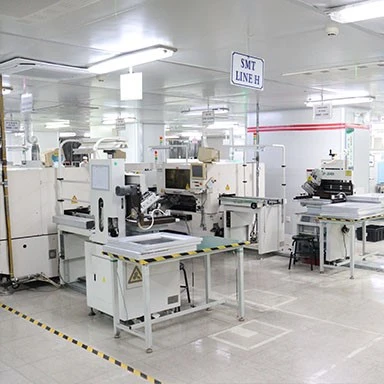

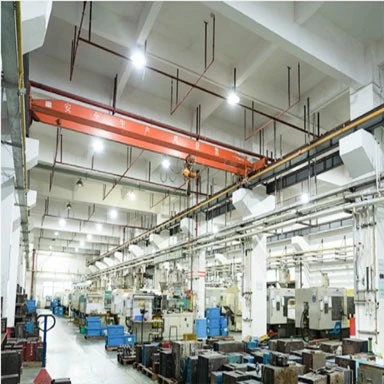

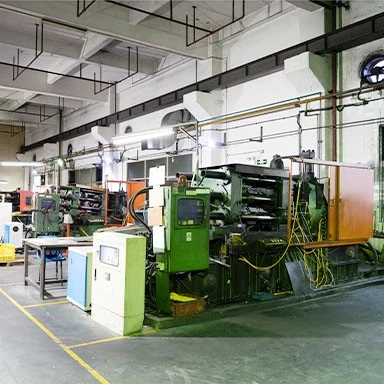

Peb lub Hoobkas tsim khoom

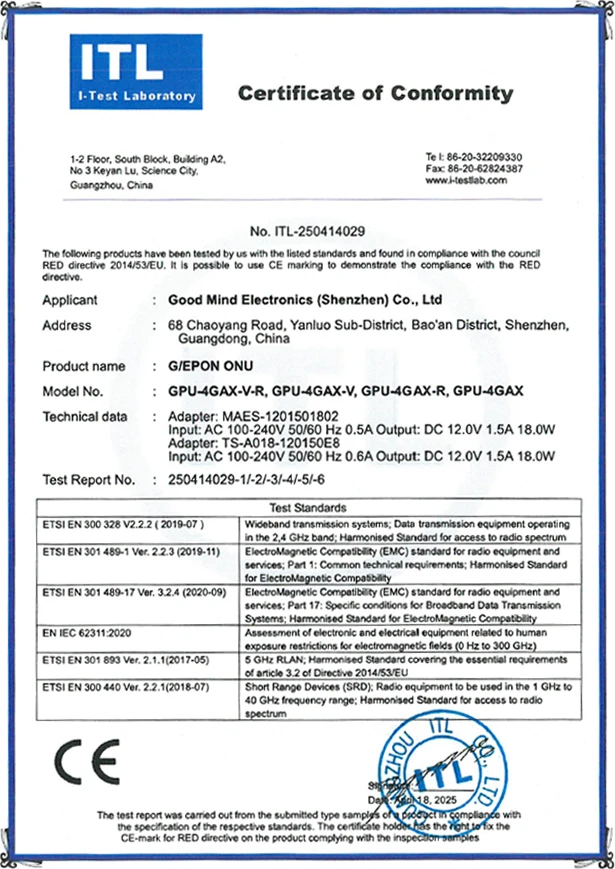

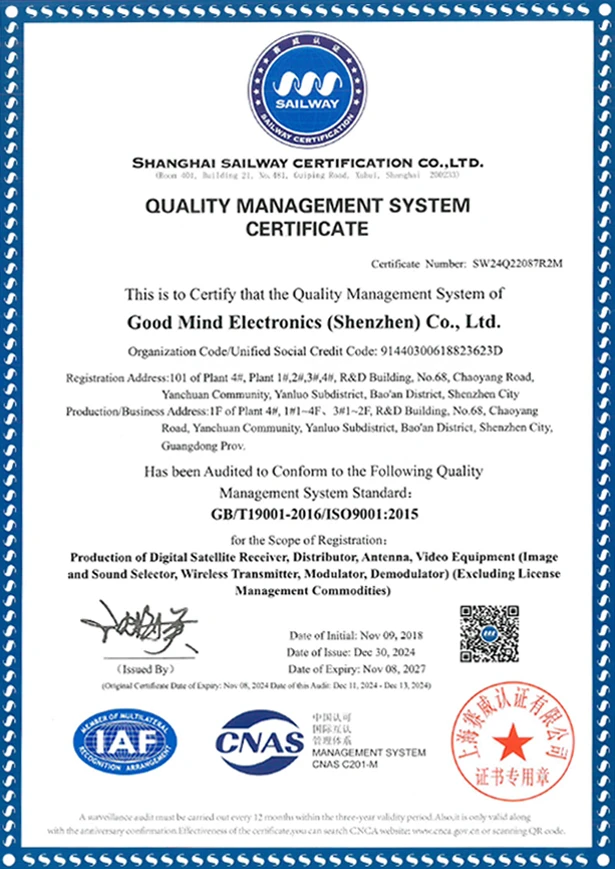

Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

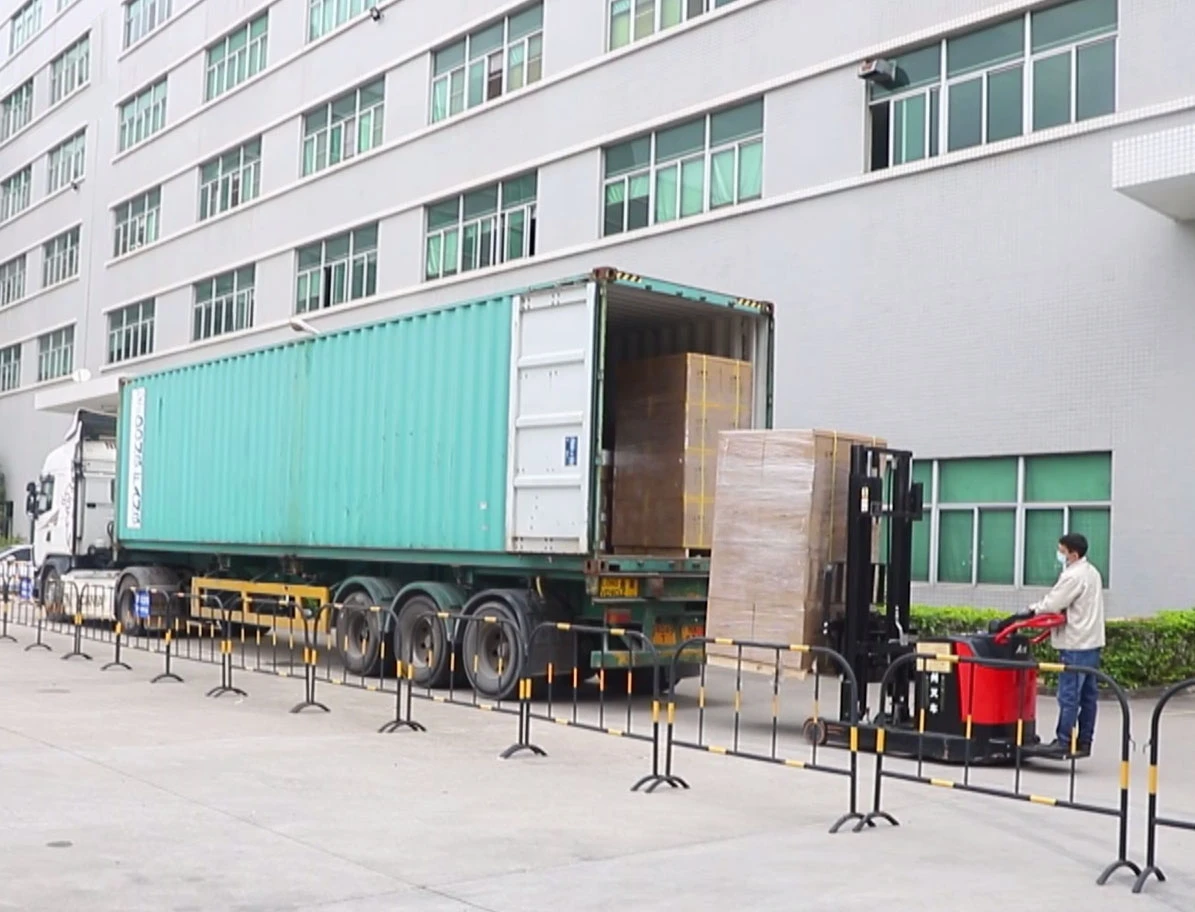

Kev thauj mus los
Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.
FAQ
Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?
A: Peb yog 100% Hoobkas thiab tseem ua lag luam online
Q: Koj txoj kev xa khoom yog dab tsi?
A: Peb feem ntau xa tuaj ntawm DHL / UPS / Fedex / TNT / Aramex. yog tias koj muaj ntau ntau -ty, koj tuaj yeem xaiv Air lossis Sea shipping.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T xaim txhab nyiaj hloov pauv, L / c, thiab lwm yam.
Q: Koj tuaj yeem ua li cas rau qhov teeb meem yog tias peb tau txais cov khoom tsis raug?
A: Xa peb cov duab lossis video thawj zaug, peb xav muab kev hloov pauv dawb. muab cov khoom rau koj.
Q: Puas tuaj yeem coj tus qauv rau kev kuaj xyuas zoo?
A: Yog lawm, peb tuaj yeem muab cov qauv rau koj kuaj.
Q: Peb puas tuaj yeem muaj peb lub logo lossis lub npe tuam txhab luam tawm ntawm koj cov khoom lossis cov khoom?
A: Yog, koj paub tseeb. Peb lees txais OEM / ODM xaj thiab muab kev pabcuam rau kev luam ntawv logo, cov cim thawv nrog rau cov qauv tsim.Koj tuaj yeem xa peb cov duab kos los ntawm email hauv jPG, TIF, Al, EPS, TIFF ntawm CorelDraw rau -mats Logo luam ntawv yuav xav tau MOQ uas yuav txawv ntawm ntau yam mod-el.Thov hu rau peb kom paub meej.
