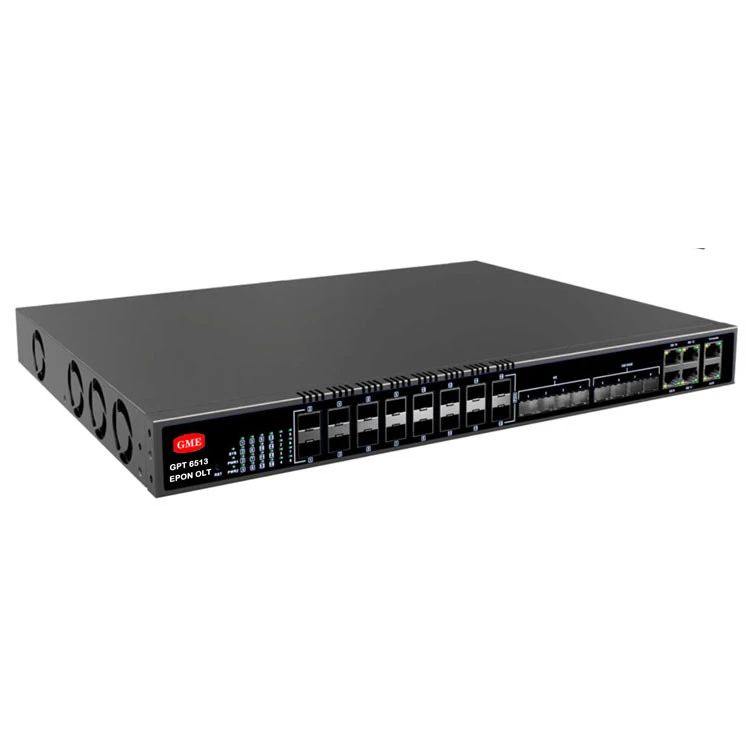

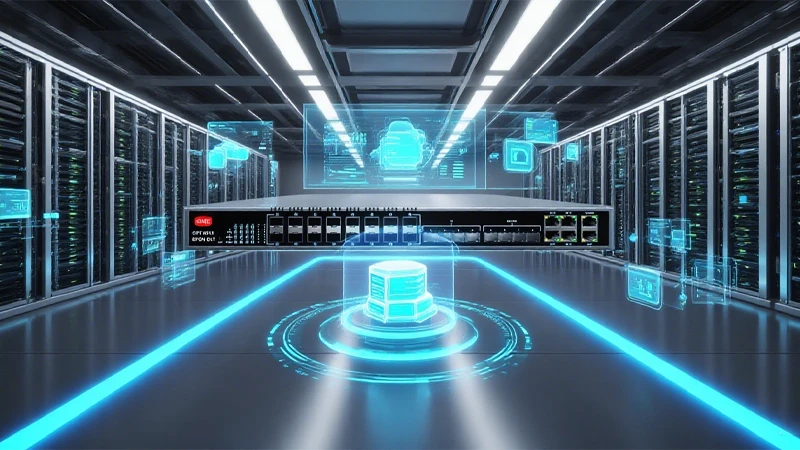

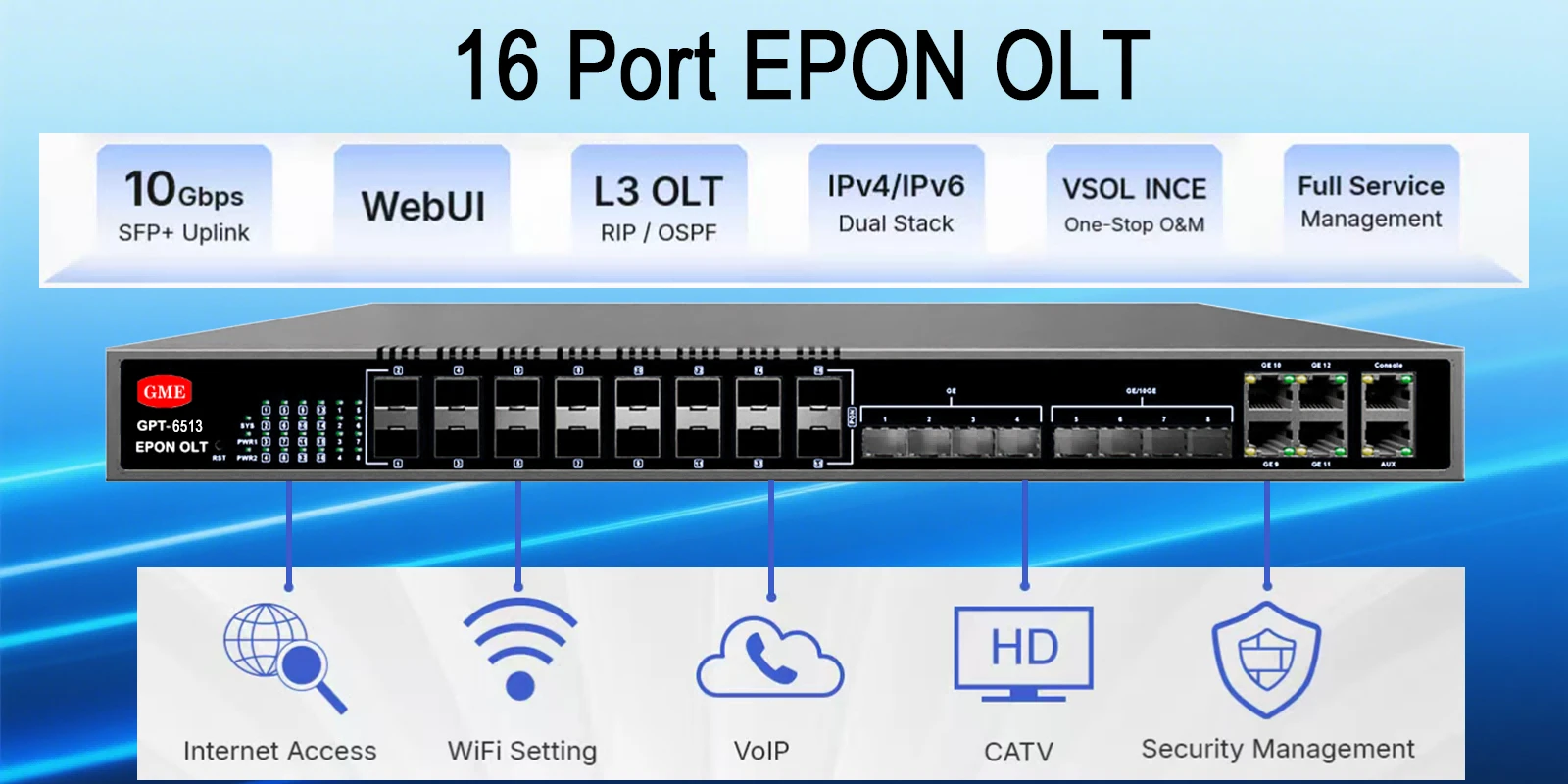

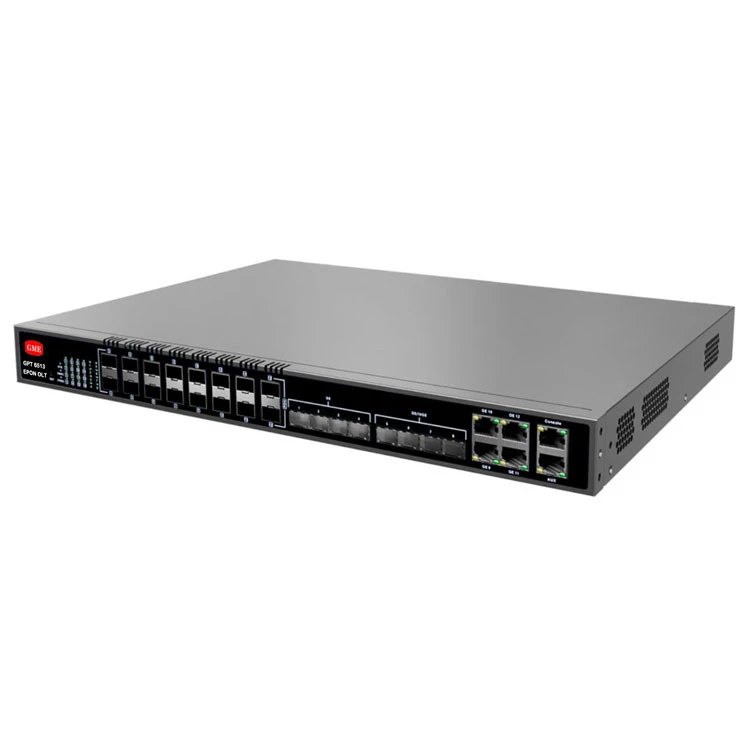

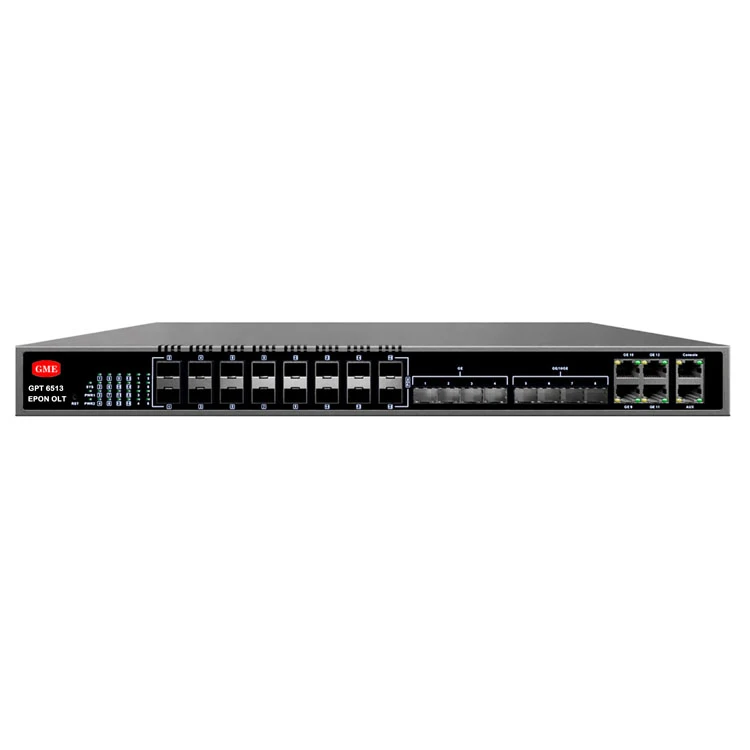

GPT 6513 yog ib qho compact OLT nkag ntaus ntawv nrog 16 EPON ports tsim, ua tiav qhov sib npaug ntawm tus nqi -kev ua tau zoo thiab kev ua haujlwm. Qhov sib cais ntawm nws qhov chaw nres nkoj PON yog 1: 64, thiab qhov kev sib kis deb tshaj plaws yog 20KM. Nws uplink thiab downlink bandwidth yog siab li: 1.25Gbps / 1.25Gbps. Nws tuaj yeem siv dav hauv FTTH, SOHO, chaw ua lag luam me thiab lwm yam kev thov.
Tom ntej: EPON OLT Series
Pizza-box EPON OLT Ua Tau Zoo Tshaj Plaws thiab Txhim Kho Broadband Deployment (4/8/16 Ports)

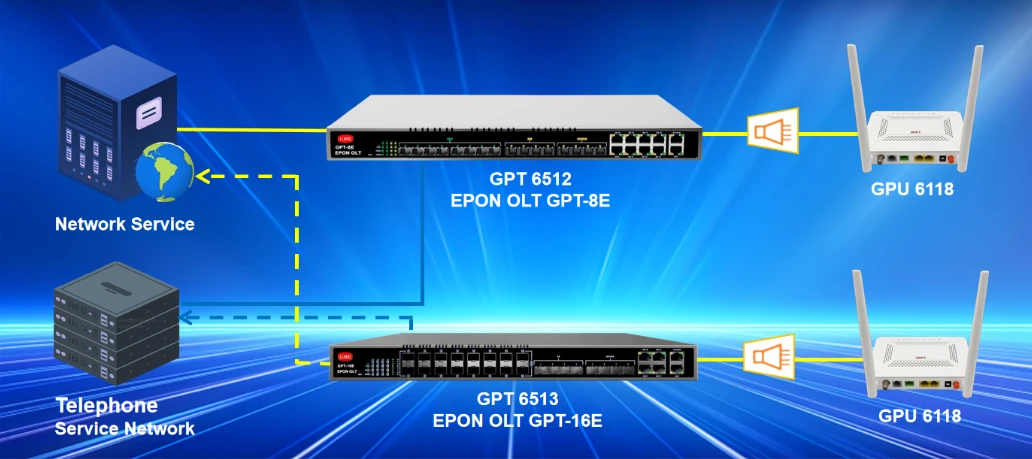

Daim ntawv thov scenarios thiab qhov zoo
Ua tsaug rau nws cov yam ntxwv, 16-chaw nres nkoj EPON OLT ua lub luag haujlwm tseem ceeb hauv ntau yam xwm txheej uas yuav tsum tau muaj kev siv bandwidth siab thiab ntau qhov chaw nkag.
Enterprise Campuses thiab Office Networks
Txawm hais tias nyob rau hauv cov tsev kawm ntawv loj, tsev kawm ntawv cov tsev kawm ntawv, lossis tsoomfwv cov tsev ua haujlwm, muaj qhov xav tau tseem ceeb rau kev nkag mus rau hauv network. 16-chaw nres nkoj EPON OLT tuaj yeem ua haujlwm tseem ceeb rau kev sib txuas hauv tsev kawm ntawv.
Qhov zoo: Leveraging qhov ntev kis tau tus mob (txog 20 kilometers) thiab tiv thaiv electromagnetic cuam tshuam ntawm ib leeg - hom fiber ntau, nws tuaj yeem yooj yim npog cov tsev kawm ntawv loj. Passive optical splitting txo qhov xav tau ntawm cov cuab yeej siv chav thiab cov nodes nquag, txo cov nqi tsis ua haujlwm thiab cov nqi kho. VLAN thiab QoS muaj peev xwm muab kev sib cais ntawm kev sib cais thiab bandwidth lav rau ntau lub tuam tsev thiab kev pabcuam (xws li kev ua haujlwm hauv chaw ua haujlwm, kev tsim khoom, kev soj ntsuam video).
Tsev so, Tsev Kho Mob, thiab Commercial Complexes
These environments feature numerous and densely packed rooms, demanding high network stability, security, and multi-service capabilities.
Qhov zoo:
Tsev so: Ib chav Optical Network (ONU) tuaj yeem xa mus rau ib chav lossis hauv pem teb, siv VLANs los muab kev ywj pheej network nkag rau txhua chav qhua thaum txhawb nqa ntau yam kev pabcuam xws li broadband, IPTV, thiab VoIP chav xov tooj.

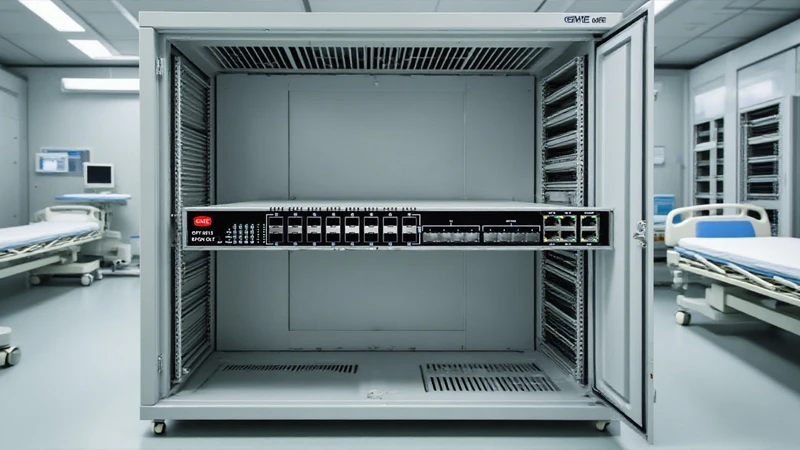

Tsev kho mob: Lub kaw lus txuas cov chaw saib xyuas neeg mob, chav sib tham, thiab cov khoom siv kho mob, ua kom ruaj khov thiab txhim khu kev qha ntawm cov ntaub ntawv kho mob tseem ceeb.
Commercial Complexes: Nws xa cov kev sib txuas rau cov khw muag khoom ib leeg, cov ntsiab lus nkag (APs) hauv cov chaw pej xeem, thiab cov koob yees duab soj ntsuam, ua kom muaj kev sib txuam thiab kev ruaj ntseg zoo dua.
L3 OLT=L3 Router + L2 OLT
Muab Txheej 3 dynamic routing raws tu qauv ntawm RIP / OSPF, tsis siv neeg routing mus rau uplink los tiv thaiv cov ntaub ntawv kis tau tus mob.
Specifications
|
Yam khoom |
TIAB SA 6513 |
|
|
Chassis |
Khib |
1U 19Inch Standard Box |
|
Uplink Chaw nres nkoj |
QTY |
12 |
|
RJ45 (GE) |
4 |
|
|
SFP + (10GE) |
4 |
|
|
SFP (GE) |
4 |
|
|
GPON Chaw nres nkoj |
QTY |
16 |
|
Lub cev interface |
SFP Slots |
|
|
Max splitting ratio |
1:64 |
|
|
Tswj Chaw nres nkoj |
1 * 10/100/1000BASE-T tawm-band chaw nres nkoj, 1 * CONSOLE chaw nres nkoj |
|
|
Backplane Bandwidth (Gbps) |
128 |
|
|
Port Forwarding Rate (Mpps) |
95.232 |
|
|
PON Chaw nres nkoj Specification |
Kis qhov deb |
20 KM |
|
GPON chaw nres nkoj ceev |
Upstream 1.244Gbps, Downstream 1.244Gbps |
|
|
Lub wavelength |
TX 1490nm, RX 1310nm |
|
|
Txuas |
SC/UPC |
|
|
Hom Fiber |
9/125μm SMF |
|
|
Txhawb PON module qib |
PX20++, PX20+++ |
|
|
Kev tswj hwm hom |
WEB, SNMP, Telnet, CLI |
|
|
Muaj nuj nqi |
Layer2 Hloov, Multicast, DHCP, Txheej 3 Txoj Kev, IPv6 |
|
|
Qhov hnyav |
6, 5kg |
|
|
Qhov Loj (L * W * H) |
442mm * 320mm * 43mm |
|
|
Kev siv fais fab |
95W |
|
|
Kub |
Ua haujlwm kub: 0 degree ~ +55 degree |
|
|
Cia Kub: -40℃~ +85 degree |
||

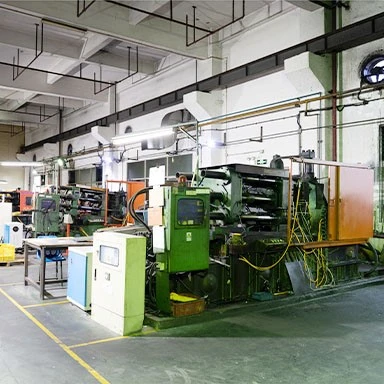

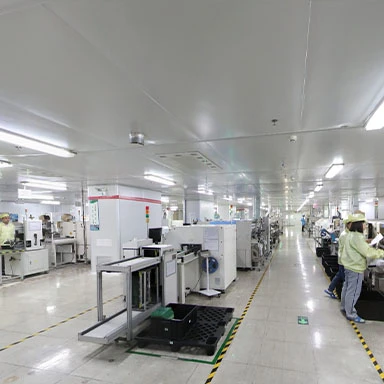

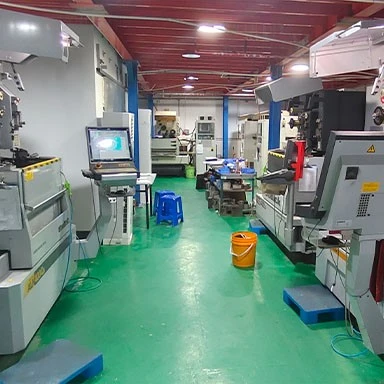

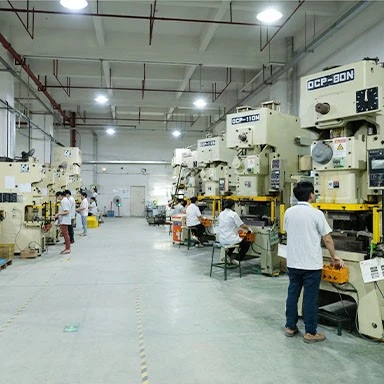

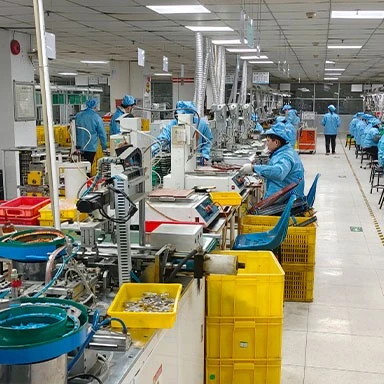

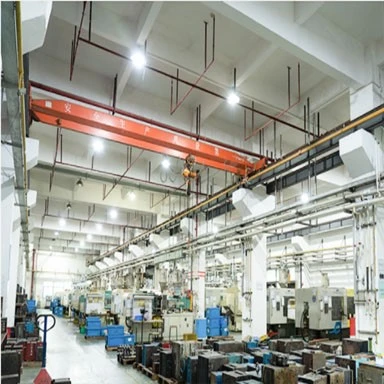

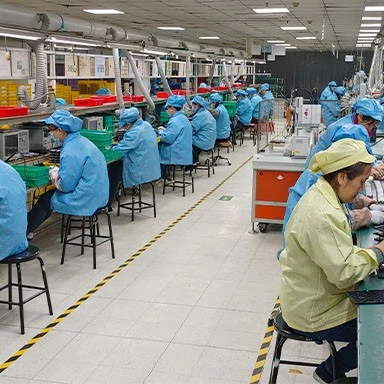

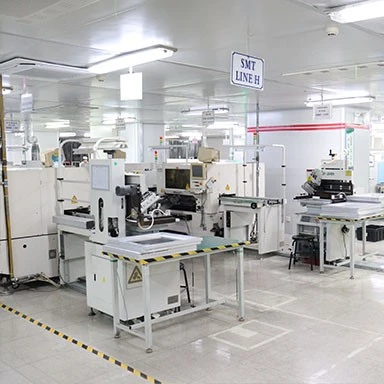

Peb lub Hoobkas tsim khoom
Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

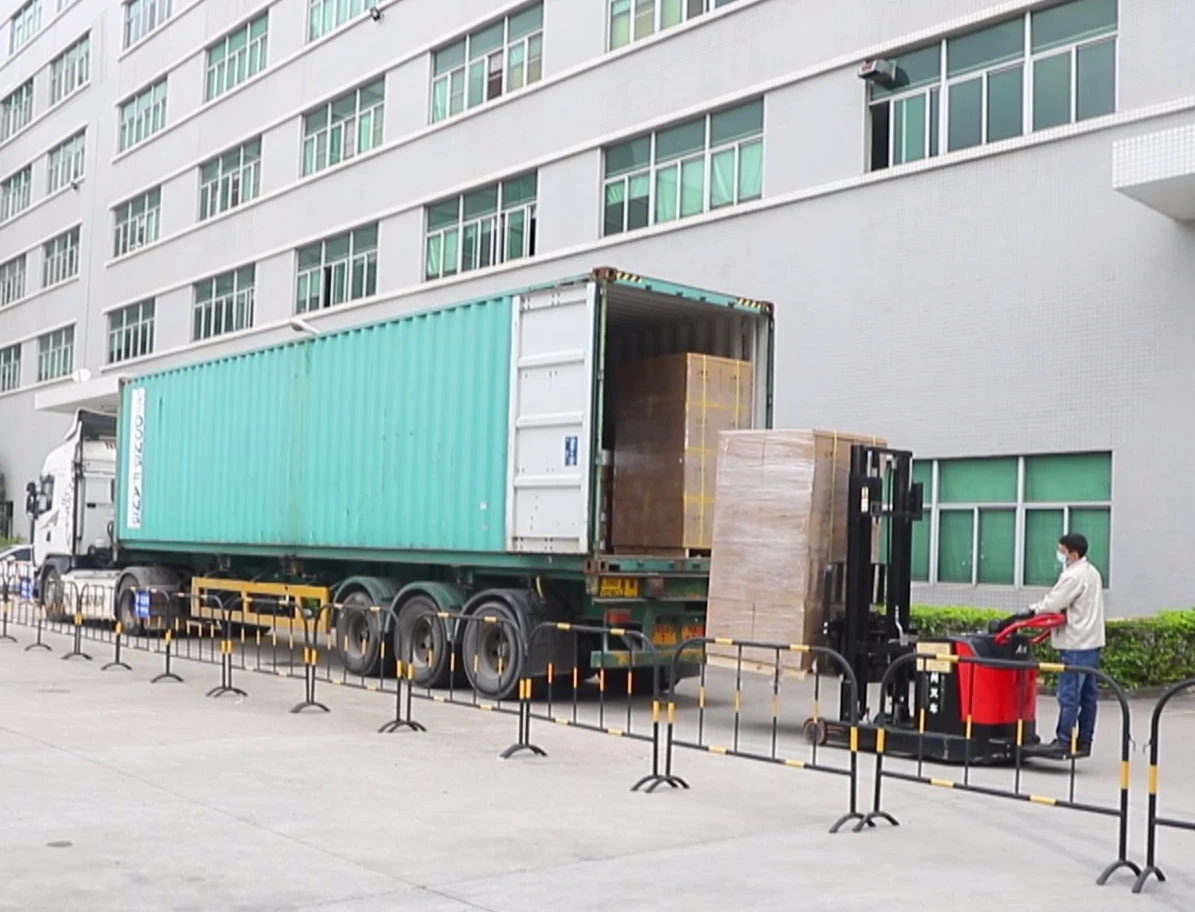

Kev thauj mus los
