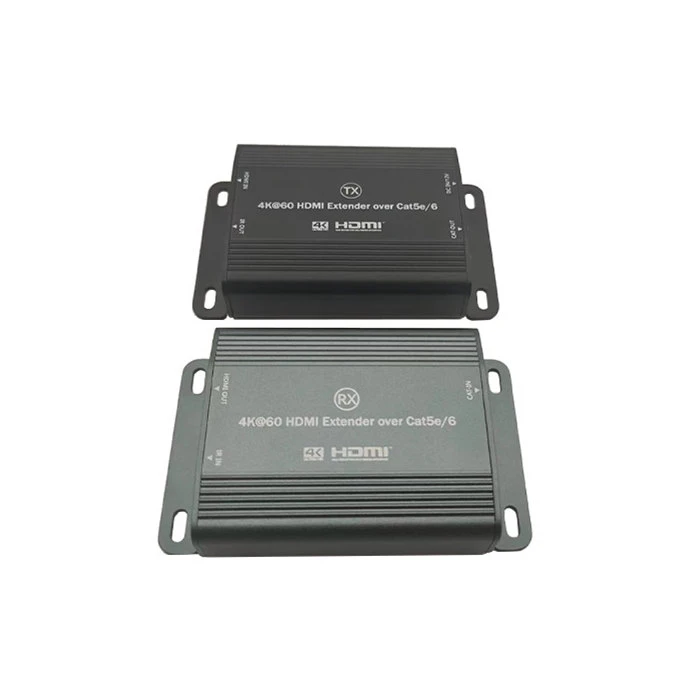

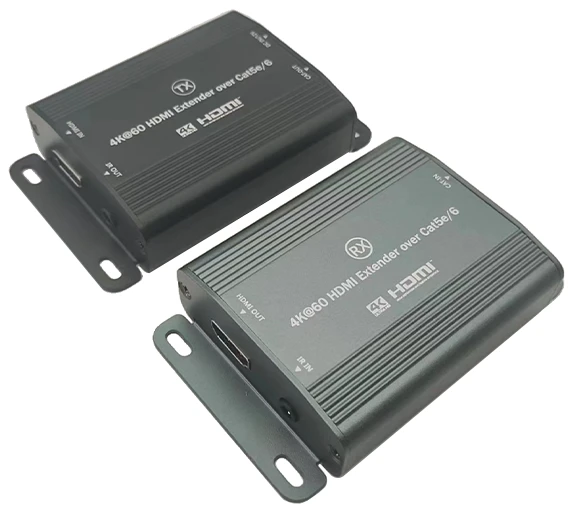

4k 60hz HDMI Extender

Cov khoom no muaj xws li ib tug transmitter (TX) thiab ib tug receiver (RX) host, whicruses ib tug network cable raws li qhov nruab nrab kis tau tus mob thiab emplovs lub latestamplification extension technology. Lub transmitter thiab receiver canextend kis tau tus mob los ntawm ib tug network cable, thiab yog sib xws nrog CAT5e / 6 network cables. Siab-cov lus txhais tau tuaj yeem txuas ntxiv mus txog 100 meters ntawm CAT5e, thiab ultra-siab- cov lus txhais tau tuaj yeem txuas ntxiv mus txog 70 meters ntawm CAT6, nrog xoom latency. Cov khoom txhawb nqa infraredreturn muaj nuj nqi, ua rau cov chaw taws teeb tswj tau yooj yim. Nws kuj muaj tus kheej- kho qhov peev xwm rau lub network cables, hloov kho cov kev daws teeb meem rau cov txiaj ntsig zoo tshaj plaws, ua kom yooj yim thiab siv tau yooj yim.This 4k 60Hz HDMI extender yog tsim rau kev sib tham video, multimedia kis las tuav, multimediaeducation, digital advertising, public boards, thiab ntau dua.

1. Siv Cat6 network cable, qhov sib kis ntawm ultra- siab- txhais wideo tuaj yeem txuas mus txog 100 meters.

2. Lub siab -kev ua tau zoo nti txhawb nqa qis latency, thiab outputs4K60Hz ultra-siab-txhais suab thiab video synchronously, nrog luag thiab clearimages thiab ruaj khov teeb liab.

3. Qhov zoo nkauj aluminium alloy casing muaj super-siab kub dissipationefficiency, tsis muaj suab nrov, lub teeb yuag, thiab tuaj yeem ua phab ntsa-mounted, ua kom nws sib zog thiab ruaj khov.

4. Qhov no 4k 60Hz HDMI extender Plug thiab ua si yam tsis muaj kev txhim kho cov tsav tsheb, ua kom yooj yim rau kev sib tw hauv tsev kho kom zoo nkauj, nrog kev zais siab thiab kev teeb tsa yooj yim.

◆ Txuas HDMI kis mus txog 70m ntawm Cat6.

◆ Ultra HD: Txhawb kev daws teeb meem video txog 4K @ 60Hz.

◆ Unibody aluminium alloy muab cov cua sov tso tawm kom ua haujlwm tau zoo.

◆ Plug & Ua Si: Tsis muaj kev teeb tsa tsav tsheb.

◆ Ua hauv IR Passback muaj nuj nqi los tswj qhov chaw los ntawm txhua qhov chaw hauv koj lub tsev.

◆ Siv POC muaj nuj nqi rau lub zog rau chav tsev.

Cov ntsiab lus



Transmitter (TX) x 1

Txais (RX) x1

Siv Guidex1

Infrared transmitter extension cable x1 (yeem)

Infrared Receiver extension cablex1 (Yeem)

Fais fab adapterx1



Kev xav tau

1.Signal Source:
Lub teeb liab ntaus ntawv nrog HDMI tso zis chaw nres nkoj, xws li DVD player, Chaw Ua Si, teeb -top box, tus kheej lub computer lossis PC, thiab lwm yam.

2.Display:
Ib qho khoom siv nrog HDMI input chaw nres nkoj, xws li SDTV, HDTV, projector, thiab lwm yam.

3. Network cable:
Unshielded lossis shielded Qeb 5/6 network cable (UTP / STP CAT5e / 6) nrog cov txheej txheem network cable txuas txuas nrog rau qhov sib npaug ntawm ob qho kawg.





Qhia

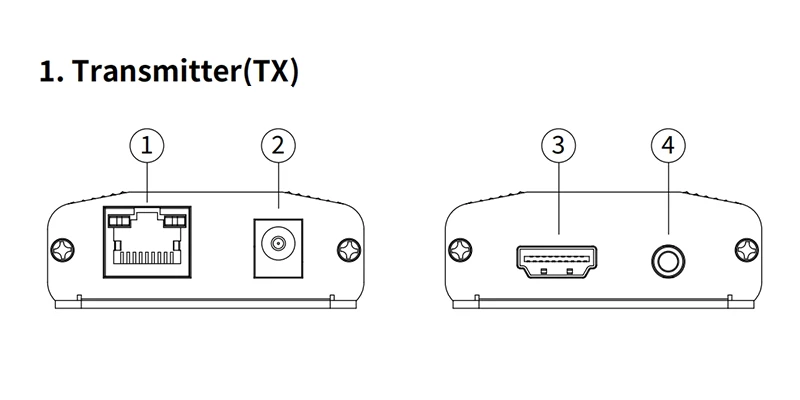

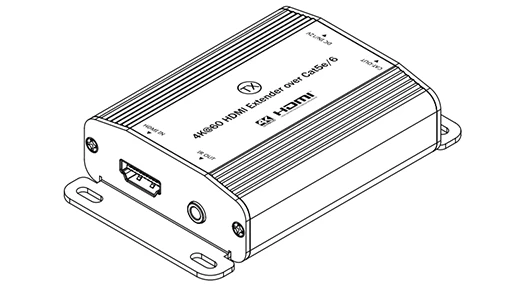

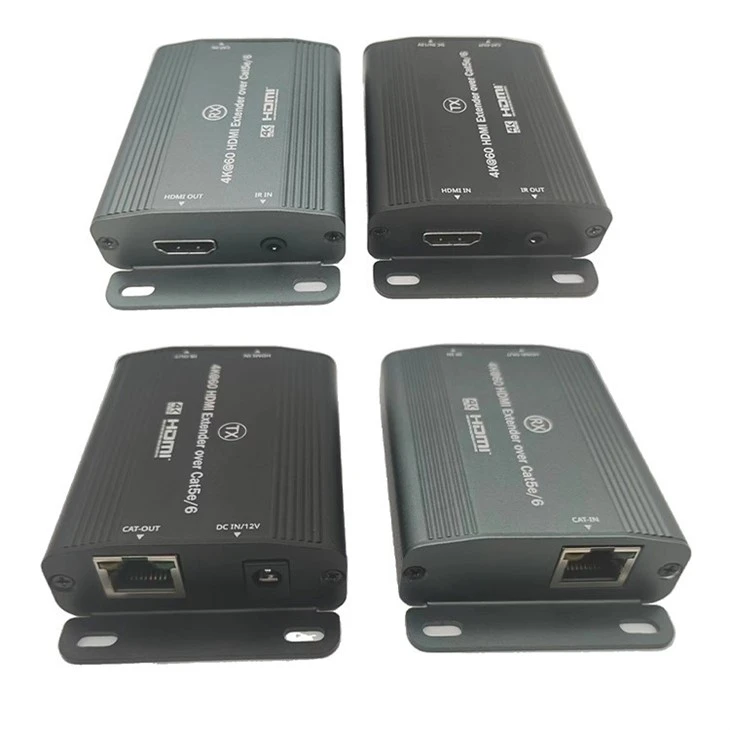

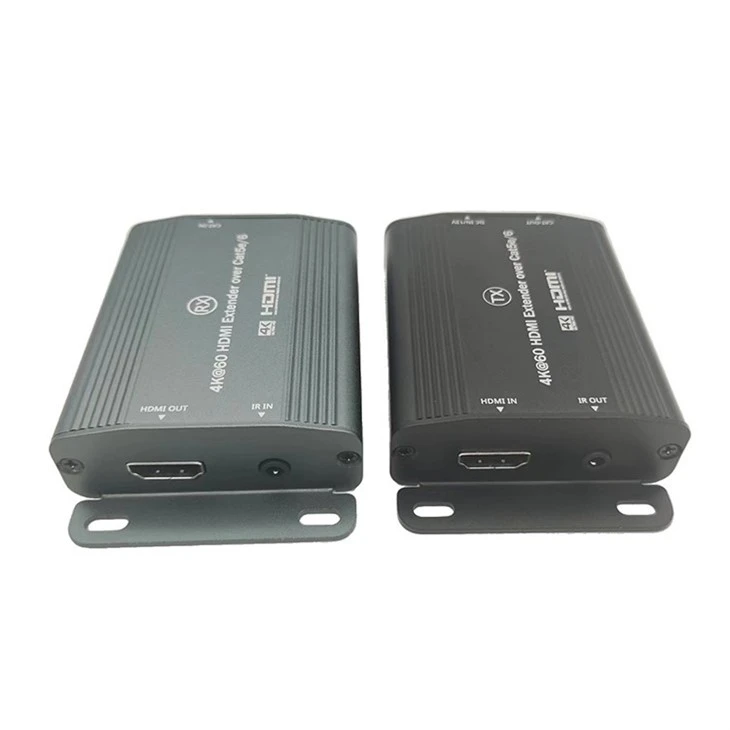

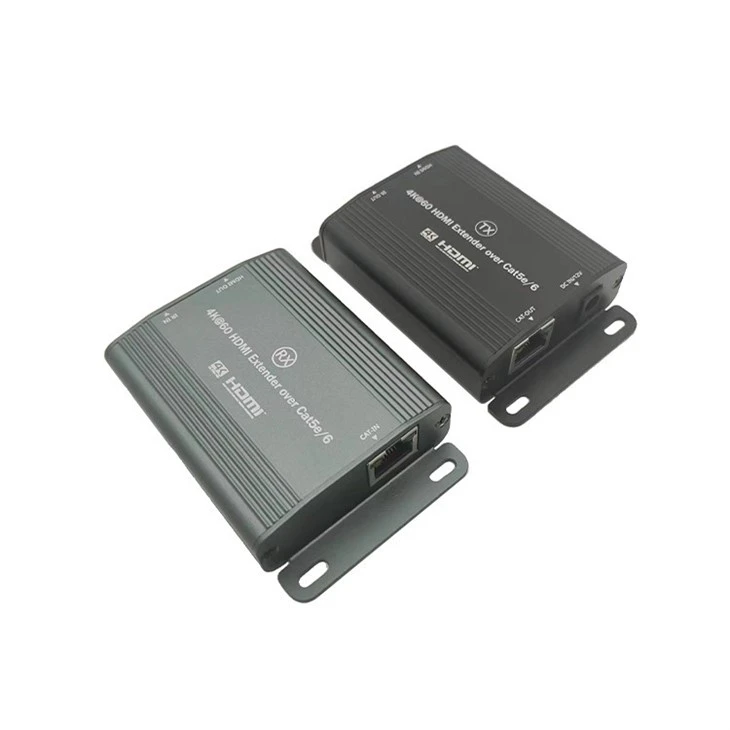

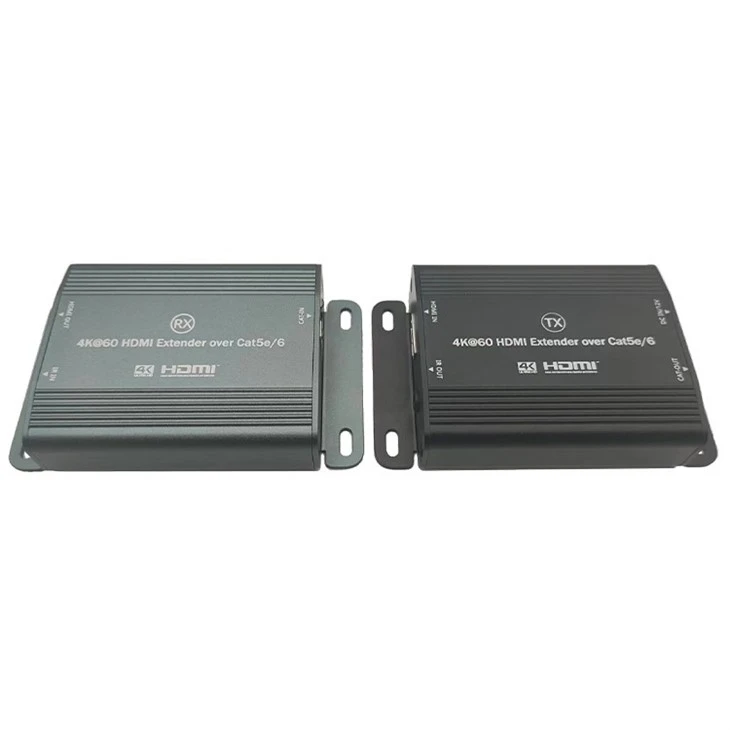

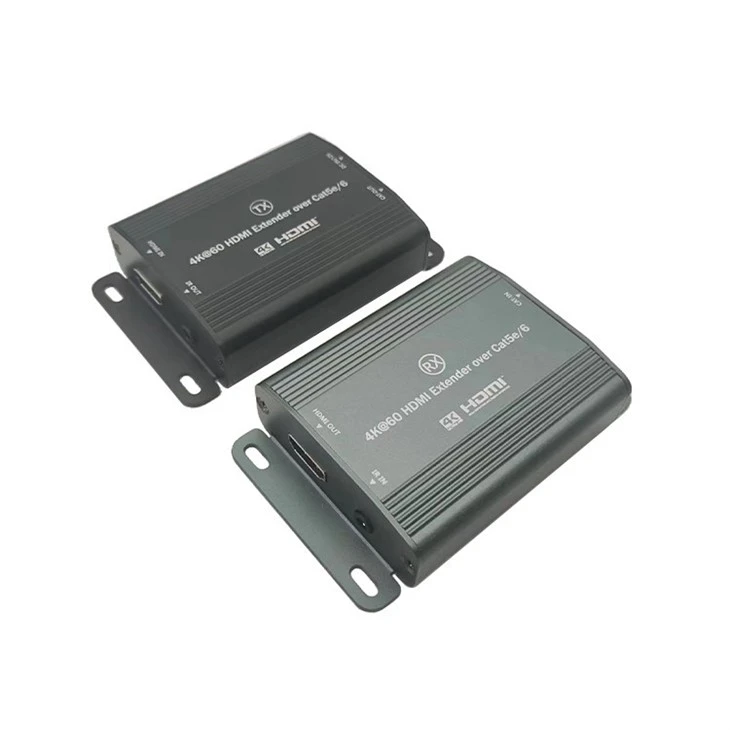

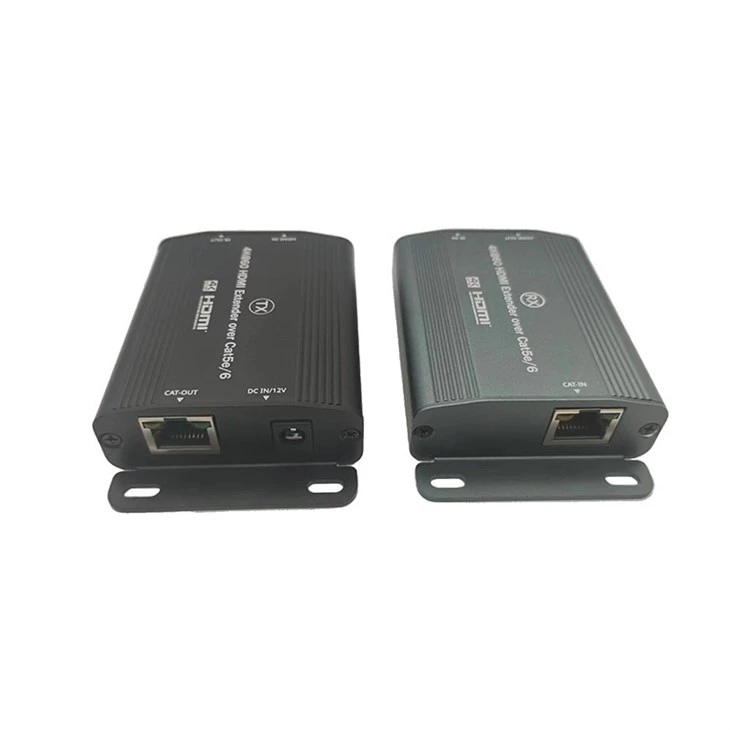

Transmitter (TX)

①RJ45 tso zis chaw nres nkoj: Txuas lub transmitter (TX) thiab receiver (RX) lub ntsiab units nrog ib tug network cable.

②Fais fab input chaw nres nkoj: Ntxig tus qauv DC12V / lA fais fab adapter suav nrog hauv cov khoom no, lossis lwm yam qauv fais fab adapters uas ua tau raws li qhov ntsuas voltage.

③HDMl input chaw nres nkoj: Txuas lub teeb liab qhov chaw mainlunit nrog rau
transmitter (TX) lub ntsiab chav tsev siv ib tug HDMl cable.

④Infrared transmitter extension cable socket: Ntxig lub infrared transmitter extension cable muab nrog rau cov khoom no thiab tso lub infrared transmitter kom ze li sai tau rau cov khoom tau txais relay lub teeb liab infrared los ntawm lub receiver.

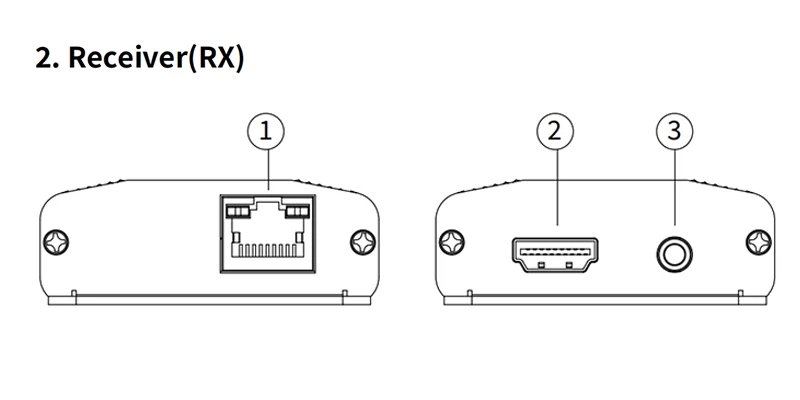

Txais (RX)

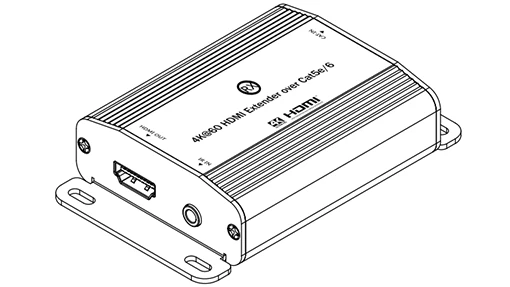

①RJ45 input chaw nres nkoj: Txuas lub transmitter (TX) thiab receiver (RX) lub ntsiab units nrog ib tug network cable.

②HDMlinput chaw nres nkoj: Siv ib qho HDMl cable los txuas cov khoom siv nrog lub receiver (RX) lub ntsiab unit.

③Infrared receiver extension qaum socket: Plugs nyob rau hauv lub infrared receiver extension qaum thiab siv cov chaw taws teeb tswj nyob rau hauv lub ntau yam ntawm infrared receiver.

Kev teeb tsa thiab kev sib txuas

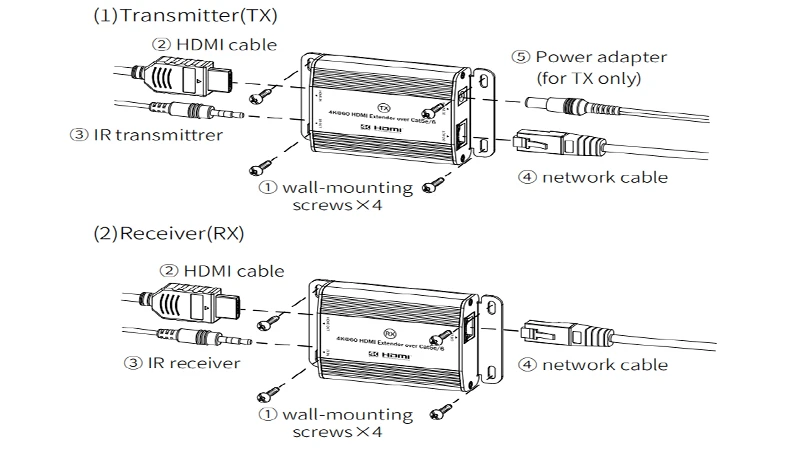

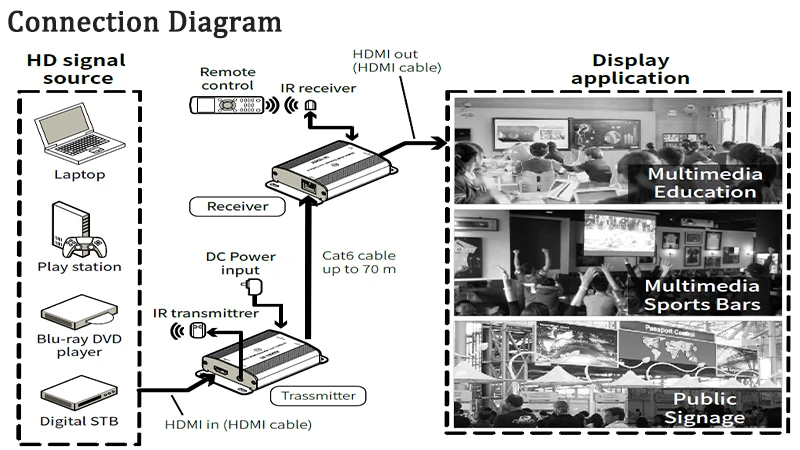

Cov lus qhia kev sib txuas:

①Siv HDMl cables los txuas lub teeb liab qhov khoom siv rau kev xa tawm. ter (TX), thiab cov cuab yeej tso saib rau lub receiver (RX) lub ntsiab chav tsev.

②Siv tus txheej txheem network cable nrog unshielded los yog shielded CAT5e / 6 (UTP / STP) thiab parallel wiring mus txuas lub transmitter (TX) mainunit mus rau lub receiver (RX) main unit.

③Txuas lub hwj chim qaum kom pib thiab ua haujlwm tau txais

Infrared chaw taws teeb tswj cov lus qhia:

①Txuas lub infrared emitter extension cable rau lR OUT jack ntawm lub transmitter (TX) thiab infrared receiver extension cable rau lR INiack ntawm lub receiver (RX).

②Nws infrared emitter taub hau ntawm lub extension cable yuav tsum muab tso rau kom ze li sai tau rau lub qhov rais txais infrared ntawm lub teeb liab sourcedevice.

③Siv lub infrared chaw taws teeb tswj ntawm lub teeb liab qhov chaw ntaus ntawv los tsom rau lub taub hau infrared receiver uas tau raug txuas mus rau lub receiver (RX) remotely xaiv raws thiab tswj playback lem

Q: TV screen zaub txawv txav, flickering, thiab suab yog
hais lus txaj muag.

A: (1) Xyuas seb lub network cable lis tau kho kom raug thiab qhov ntev yog nyob rau hauv qhov kev tso cai.

(2) Fais fab tuag thiab ntawm TX kawg.

Q: Lub teeb txiv kab ntxwv ntawm RJ45 connector ntawm RX kawg ntawm lub receiver tsis ci.

A: (1) Xyuas seb lub network cable yog tus qauv network cable nrog kev sib txuas ntawm ob qho kawg.

(2) Xyuas seb HDMl teeb liab input ntawm TX kawg yog qhov qub.

(3) Fais fab tuag thiab ntawm TX kawg.

Q: Lub teeb txiv kab ntxwv ntawm RJ45 txuas ntawm RX kawg ntawm lub receiver yog flashing, tab sis tsis muaj cov duab tso tawm.

A: (1) Tshawb xyuas seb cov khoom txhawb nqa hom teeb liab HDMl tam sim no.

(2) Xyuas seb HDMl cable thiab cov zaub puas raug kho.

(3) Sim tshem tawm thiab ntsaws lub network cable dua, lossis lub hwj chim tawm thiab ntawm TX kawg.
