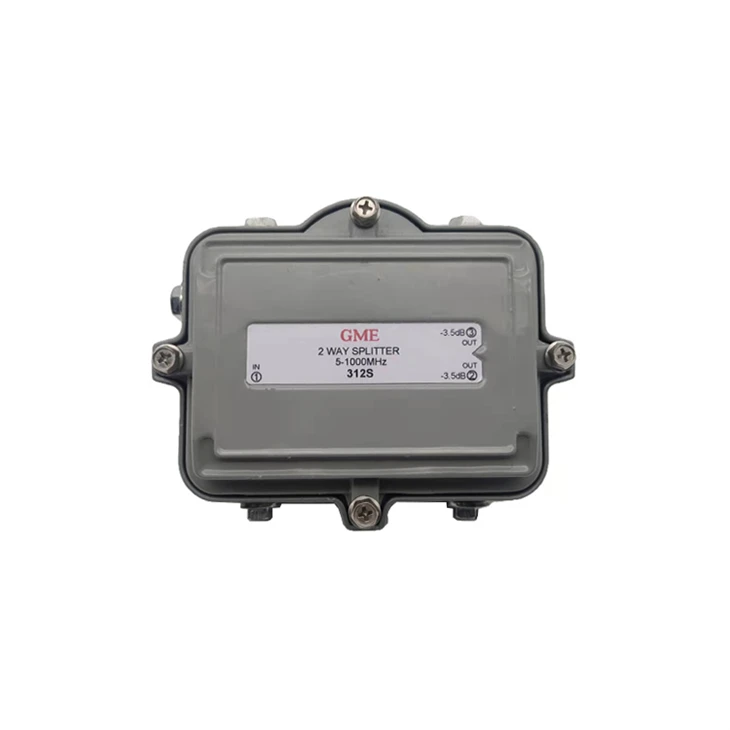

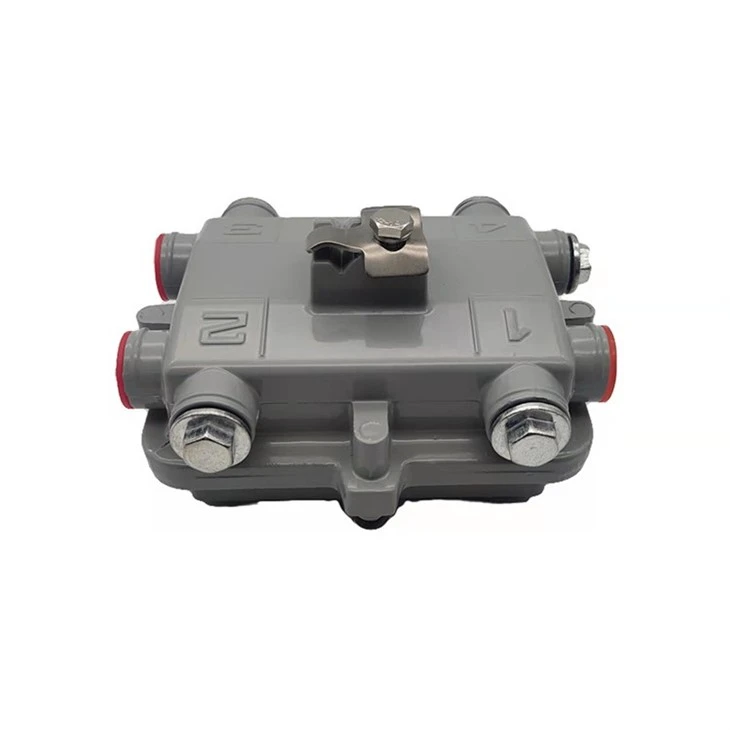

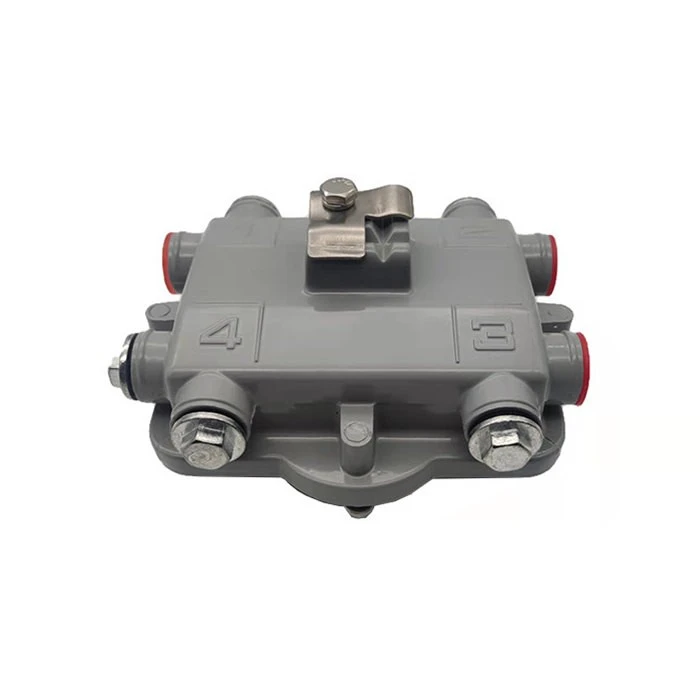

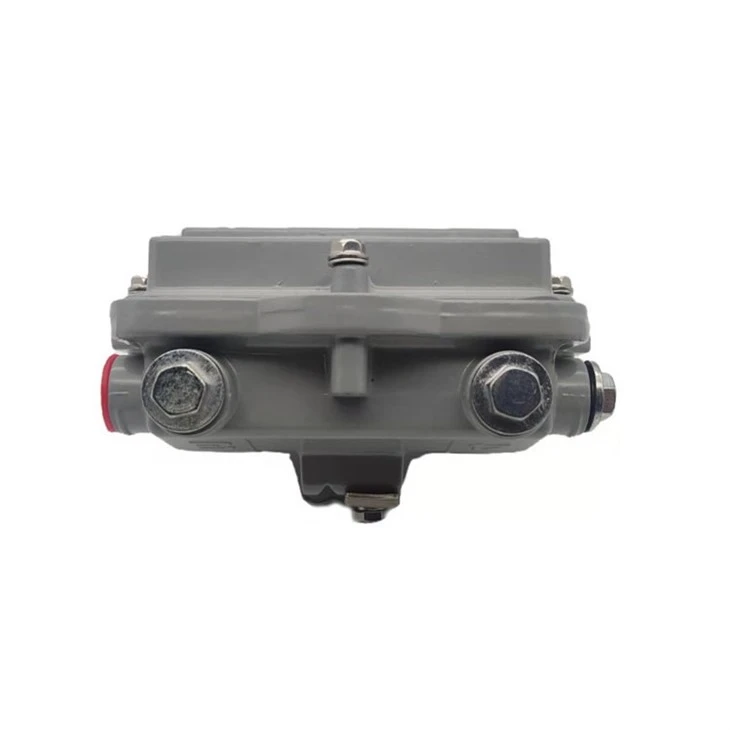

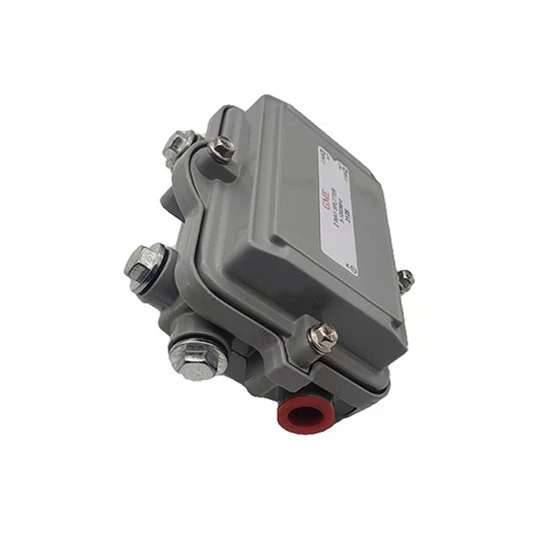

Kev piav qhia

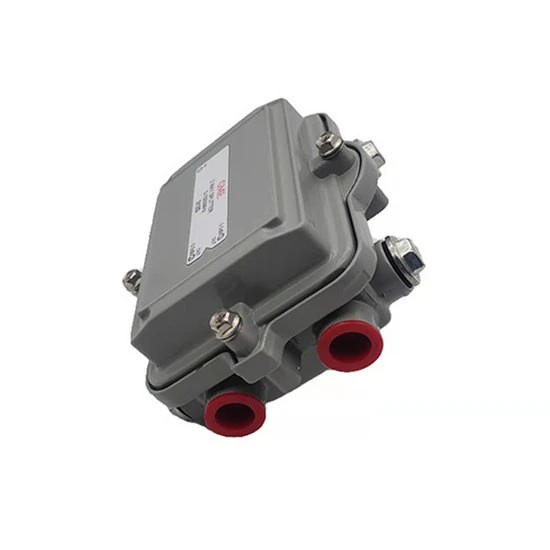

CATV Sab nraum zoov Splitter yog siv rau sab nraum zoov CATV broadband tes hauj lwm txog li 1GHz. Lawv muaj kev tiv thaiv huab cua, muaj kev ntseeg tau zoo. Lawv yog optimized rau siv sab nraum zoov. CATV Sab Nraum Splitter zoo tagnrho rau CATV kev faib tawm.
CATV Sab Nraum Splitter yog tsim tshwj xeeb los tiv thaiv kev nruj ntawm sab nraum zoov, suav nrog kev raug rau huab cua sib txawv xws li nag, daus, thiab hnub ci. Nws muaj zog thiab huab cua- tiv thaiv kev tsim kho kom muaj kev ntseeg siab ntawm cov teeb liab xa tawm hauv cov xov tooj cua sab nraum zoov.
Feem ntau ntsia ntawm qhov chaw xa xov cable, lub splitter yuav siv lub xov tooj cua hauv xov tooj cua thiab muab faib ua ntau lub teeb liab tawm. Cov teeb liab tso tawm no tuaj yeem raug xa mus rau ib tus neeg lub tsev lossis chaw lag luam, tso cai rau cov neeg nyob hauv lossis cov neeg xauj tsev nkag mus rau ntau qhov chaw hauv TV.
Nta
◆ 5-1000MHz puv band ua haujlwm.
◆ Nickel plated tooj dag "F" connector nrog kev tiv thaiv dej tsis muaj zog Ua kom muaj kev tiv thaiv huab cua.
◆ Woven metallic aasket siv los muab Hi-RFl.
◆ Tag nrho cov huab cua pov thawj kaw thiab strand clamp suav nrog.
◆ Siab RFI tiv thaiv.
◆ High quality aluminium diecast vaj tsev nrog hmoov xim txheej.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
||
|
Tus Qauv Zauv: GDST-031 (312S) |
||
|
Insertion poob (dB) |
5 ~ 40 MHz |
4.2 |
|
40 ~ 470 MHz |
4.2 |
|
|
470 ~ 750 MHz |
4.2 |
|
|
750 ~ 860MHz |
4.2 |
|
|
860 ~ 1000MHz |
4.2 |
|
|
Kev sib cais (dB) |
5 ~ 40 MHz |
25 |
|
40 ~ 470 MHz |
30 |
|
|
470 ~ 860MHz |
25 |
|
|
860 ~ 1000MHz |
25 |
|
|
Rov qab poob (dB) |
5 ~ 40 MHz |
22 |
|
40 ~ 470 MHz |
20 |
|
|
470-750 MHz |
18 |
|
|
750 ~ 860MHz |
18 |
|
|
860 ~ 1000MHz |
16 |
|

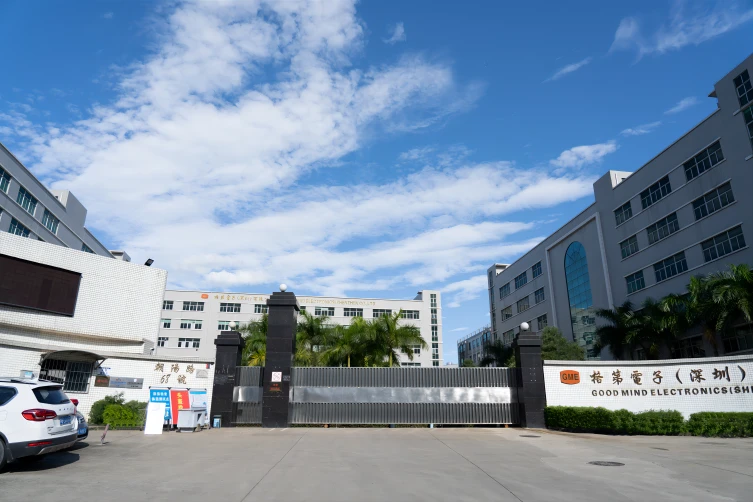

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Vim li cas thiaj xav tau ib qho Sab Nraud Splitter rau CATV?
Lub splitter sab nraum zoov yog siv thaum lub teeb liab yuav tsum tau muab faib rau ntau qhov chaw sab nraum lub tsev, xws li mus rau txawv chav los yog sab nraum zoov. Sab nraum zoov splitters yog tsim los tiv thaiv ib puag ncig.
CATV Sab nraum zoov Splitter ua haujlwm li cas?
Lub splitter siv lub teeb liab CATV los thiab muab faib ua ntau lub teeb liab tso tawm, txhua tus tuaj yeem txuas nrog lub cable uas khiav mus rau qhov chaw sib txawv lossis cov khoom siv, xws li TVs lossis cable modems.
CATV Sab nraum zoov Splitter yog dab tsi?
Lub CATV sab nraum zoov splitter yog ib yam khoom siv nyob rau hauv cable TV systems los faib cov xov tooj cua nkag mus rau hauv ntau lub teeb liab tawm, tso cai rau kev faib cov teeb liab mus rau ntau yam khoom siv.

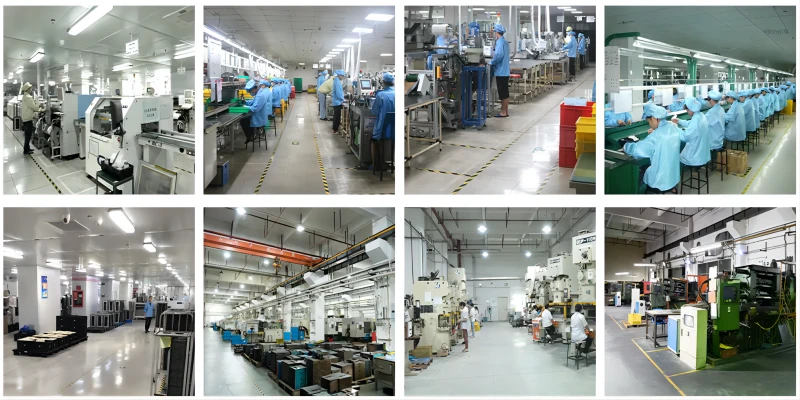

Peb lub Hoobkas tsim khoom
FAQ
Q: Dab tsi yog qhov txawv ntawm qhov sib cais sab hauv thiab sab nraum zoov?
A: Sab nraum zoov splitters yog tsim los ua huab cua tsis zoo thiab muaj peev xwm tiv taus cov ntsiab lus, ua kom ntseeg tau kev ua tau zoo hauv kev teeb tsa sab nraum zoov. Sab hauv tsev splitters feem ntau tsis tsim kom raug rau cov dej noo los yog kub heev.
Q: Puas tuaj yeem siv CATV Sab Nraud Splitter siv rau satellite TV teeb liab?
A: Thaum CATV splitters tau tsim tshwj xeeb rau cable TV teeb liab, qee zaum lawv tuaj yeem siv rau satellite TV teeb liab yog tias qhov ntau zaus thiab cov ntsiab lus sib xws.
Q: Yuav ua li cas yog lub CATV Sab nraum zoov Splitter ntsia?
A: Kev teeb tsa suav nrog kev txuas cov khoom xa tuaj los ntawm cov chaw muab kev pabcuam mus rau qhov chaw nkag ntawm lub splitter. Cov chaw nres nkoj tso zis tom qab ntawd txuas nrog coaxial cables uas khiav mus rau qhov chaw sib txawv uas xav tau cov teeb liab cable.
Q: Dab tsi weatherproofing nta CATV Sab nraum zoov Splitters muaj?
A: Sab nraum zoov splitters feem ntau muaj weatherproof enclosures los yog casings uas tiv thaiv lawv los ntawm ya raws, nag, thiab lwm yam ib puag ncig. Cov yam ntxwv no ua kom ntseeg tau tias kev ua tau zoo nyob rau sab nraum zoov.
